Product Description
-

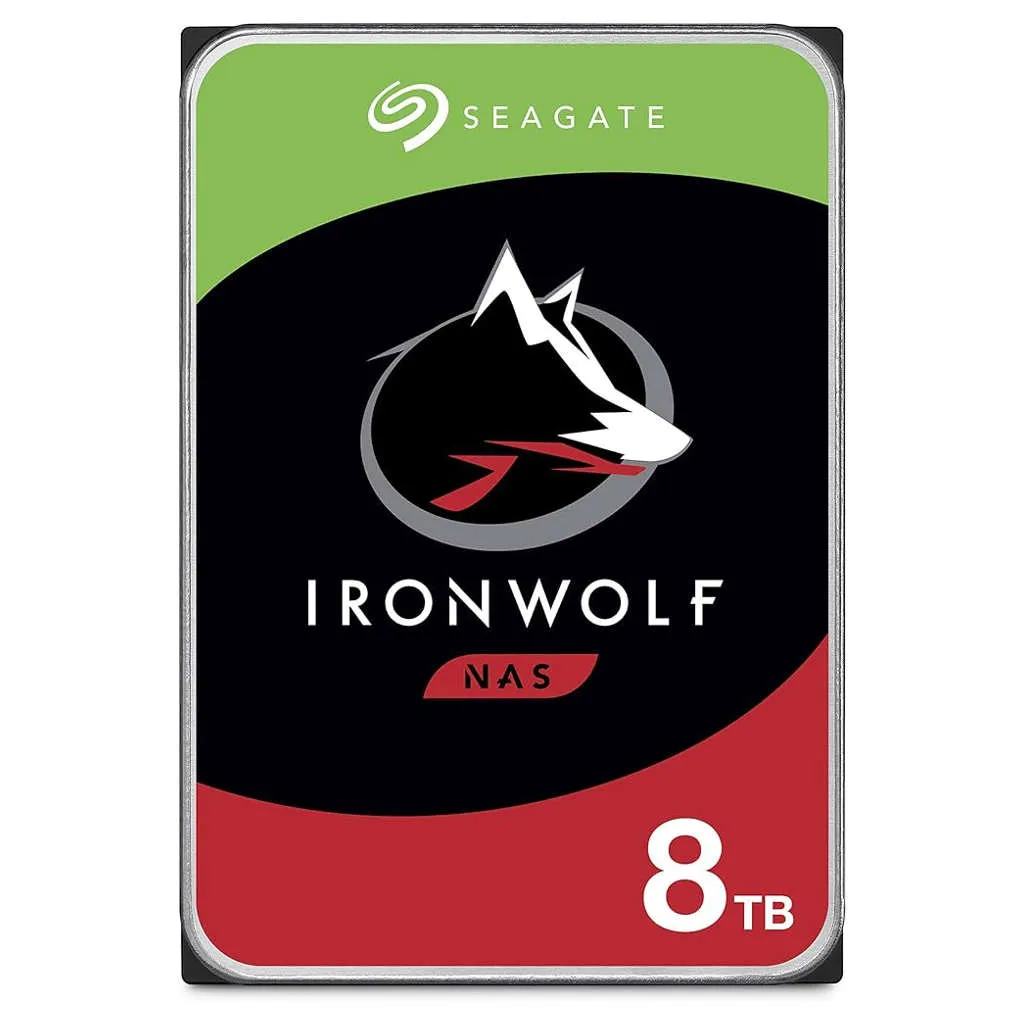

IronWolf is designed for consumer and commercial NAS
-
Delivering Tough, Ready and Scalable 24x7 performance in multi-bay, networked environments
-
Key Advantages
-
Optimized for NAS with AgileArray
-
Enables Dual-Plane Balancing and Time-Limited Error Recovery to deliver best-in-class RAID performance in multi-bay systems
-
Always On, Always Accessible
-
IronWolf drives are designed for 24x7 usage, allowing users to access their data any time, anywhere
-
All-CMR Portfolio
-
All IronWolf drives utilize Conventional Magnetic Recording (CMR) technology for consistent, best-in-class NAS performance
-
Up to 18TB
-
Broad range of capacity options to deliver scalable and cost-efficient storage solutions
-
Built Tough
-
IronWolf drives are rated for 180TB/year workload, allowing consumer and commercial NAS users to seamlessly store and work with large amounts of networked data
-
Rotational Vibration (RV) Sensors
-
Built-in RV sensors for vibration tolerance and consistent performance in multi-bay systems
-
IronWolf Health Management (IHM)
-
Actively protect your NAS data with Prevention,Intervention, and Recovery recommendations to ensure peak system health
Product Specification
| Brand | Seagate |
| Product Type | Hard Disk Drive |
| Product Model | Iron Wolf |
| Product Code | ST8000VN004 |
| Capacity | 8TB |
| Interface | SATA 6 Gb/s |
| Features and Performance | |
| Drive Bays Supported | 1-8 Bays |
| Recording Technology | CMR |
| Drive Design (Air or Helium) | Air |
| Workload Rate Limit (WRL) | 180 |
| Rotational Vibration (RV) Sensor | Yes |
| Dual-Plane Balance | Yes |
| Error Recovery Control | Yes |
| Max. Sustained Transfer Rate OD (MB/s) | 210MB/s |
| Spindle Speed (RPM) | 7200 |
| Cache (MB) | 256 |
| Reliability | |
| Load/Unload Cycles | 600,000 |
| Nonrecoverable Read Errors Rate Maximum | 1 per 10E15 |
| Power-On Hours | 8760 |
| Mean Time Between Failures (MTBF, Hours) | 1,000,000 |
| Power Management | |
| Startup Current Typical (12V, A) | 1.8 |
| Average Operating Power | 3.1 |
| Idle Power Average (W) | 7.8W |
| Standby Mode/Sleep Mode Typical (W) | 1.0/1.0 |
| Voltage Tolerance, Inc. Noise (5V / 12V) | ±5% / ±10% |
| Environmental/Temperature | |
| Operating Temperature (Ambient,Minimum°C) | 0 |
| Operating Temperature (Drive Reported,Maximum °C) | 65 |
| Nonoperating Temperature (Ambient, Minimum / Maximum °C) | -40 / 70 |
| Environmental/Shock | |
| Shock,Operating/Nonoperating: 2ms (Maximum) | 70Gs/300Gs |
| Environmental/Acoustics | |
| Acoustics, Idle (Typical, Measured In Idle 1 State) (dBA) | 28 |
| Acoustics, Seek (Typical) (dBA) | 32 |
| Physical | |
| Height | 26.11mm/1.028in |
