Introducing the ROCKSOLAR 800W 12V Solar Wind Turbine Kit

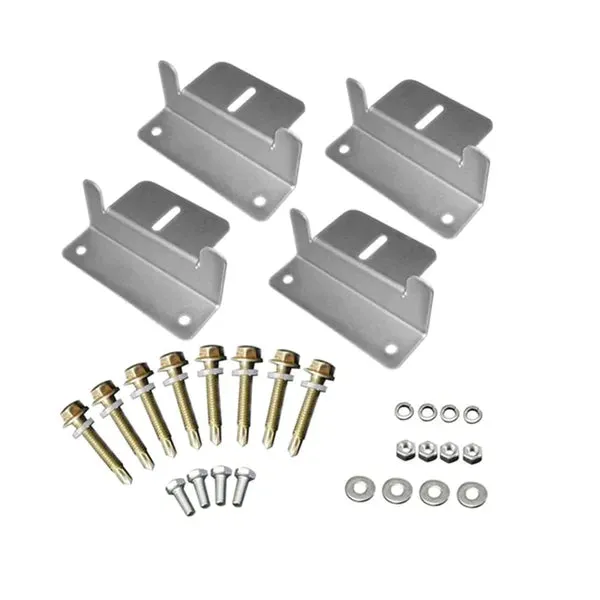

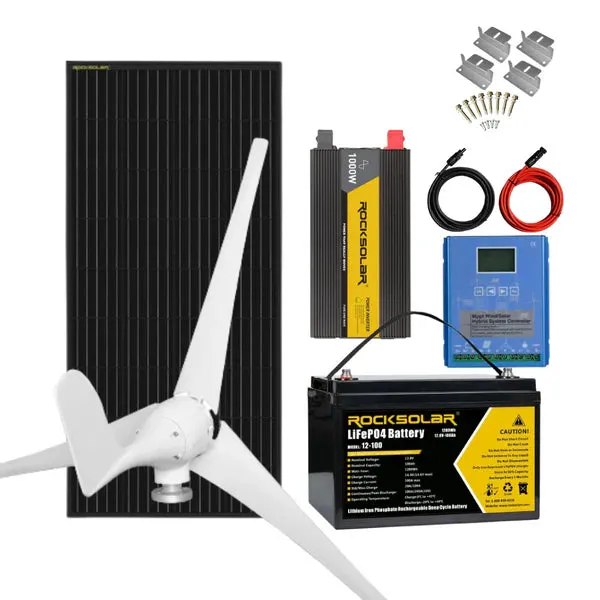

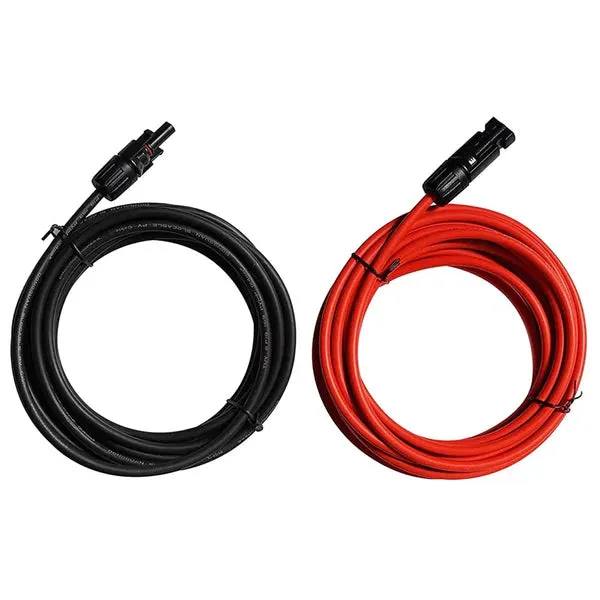

The ROCKSOLAR 800W 12V Solar Wind Turbine Kit is a dynamic and versatile solution for sustainable energy generation. This hybrid kit combines the power of wind and solar to deliver up to 800W of energy, making it perfect for off-grid applications, remote areas, or as a reliable backup power source. Key components of this innovative system include a 600W Wind Turbine Generator and a 200W Monocrystalline Solar Panel, seamlessly integrated through a 40A Wind Solar Hybrid Streetlight Controller. The kit also comes with a 20ft 8AWG Extension Cable with MC4 connectors and a 40ft 8AWG Wind Turbine Extension Cable, providing flexibility and ease in setup. A sturdy Z Mounting Bracket and a 10ft M8 Battery Connection Cable are included to ensure secure installation and efficient power transfer. Additionally, the kit also features a 1000W 12V-110V Pure Sine Wave Inverter and a 100Ah 12V LiFePO4 Lithium Battery, enhancing its functionality and efficiency. This 800W 12V Solar Wind Turbine Kit from ROCKSOLAR is designed for those seeking a reliable, eco-friendly, and efficient power solution. Its versatility makes it ideal for a variety of uses, from powering a small cabin to serving as an emergency power supply.

Product Features

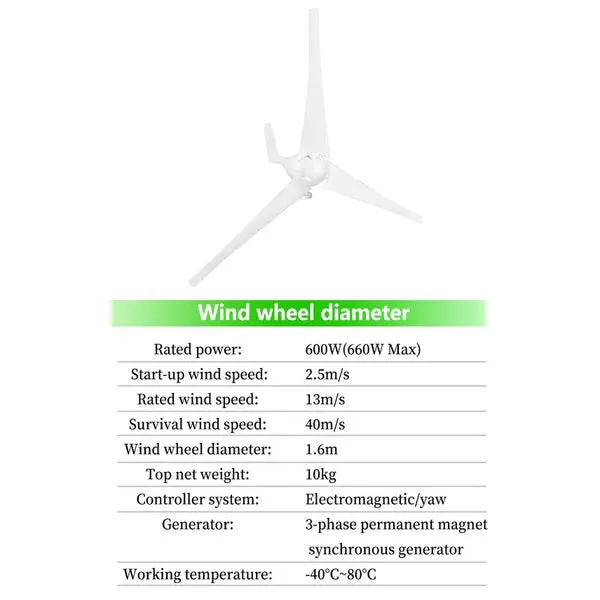

ROCKSOLAR 600W Wind Turbine Generator

• Model: SR-W06; Rated Power: 600W, Max Power: 660W.
• Dual Voltage: 12/24V adaptable for diverse setups.
• Start-up Wind Speed: Just 2.5m/s, efficient in low wind.
• Optimal Performance: at 13m/s Rated Wind Speed.
• Working Range: 2.5~25m/s, resilient in varied conditions.
• Survival Wind Speed: Withstands up to 40m/s.
• Lightweight Design: 10Kg net weight, easy to install.

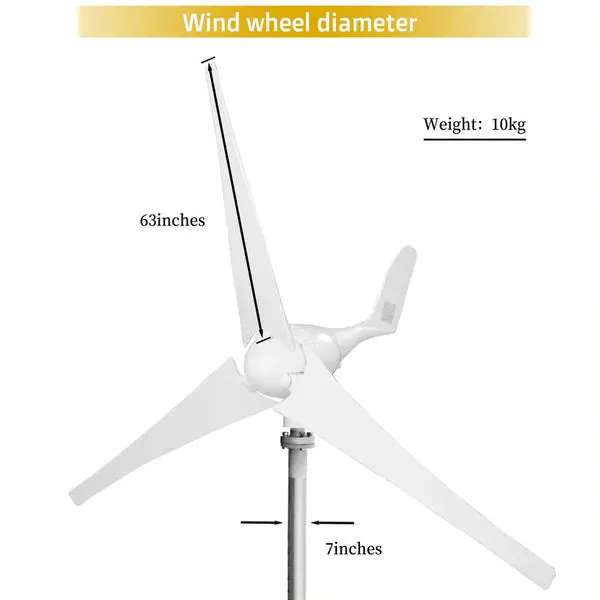

• Wind Wheel Diameter: 1.6m for optimal energy capture.
• Blades: 3 or 5 Nylon fiber blades, durable and strong.
• Generator: Three-phase permanent magnet for consistency.
• Control: Electromagnetic/yaw system, auto-adjusting.
• Temperature Range: Operates from -40°C~80°C.
• Tower Type: Compatible with Guyed towers.
• Eco-friendly: Ideal for renewable energy generation.
• Suitable for: Off-Grid and Backup Power.

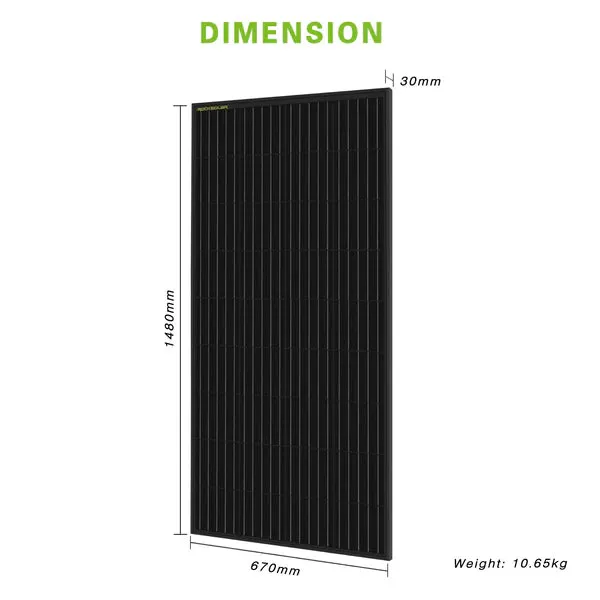

ROCKSOLAR Black Diamond 200W 12V Rigid Monocrystalline Solar Panel

• Type: High-efficiency Monocrystalline panel.
• Power Output: 200W for robust energy generation.
• System Voltage: 12V, suitable for various installations.
• Cell Efficiency: 20-22%, ensuring optimal performance.
• Frame: Durable Aluminum construction.
• Size: Compact at 1480mm x 670mm.
• Weight: Approximately 25-30 lbs, easy to handle.
• Temperature Range: Operates from -40°C to 85°C.
• Waterproof: IP65 rating, resilient in all weathers.
• Glass: Low-iron tempered glass for high light transmittance.
• Diodes: Integrated Bypass Diodes to reduce power drop.
• Connectors: Standard MC4, universally compatible.
• Cable: Varies by brand (approx. 3-6 ft).
• Installation: Pre-drilled mounting holes for easy setup.
• Longevity: Designed for over 25 years of service life.
• Warranty: 10-year product assurance.

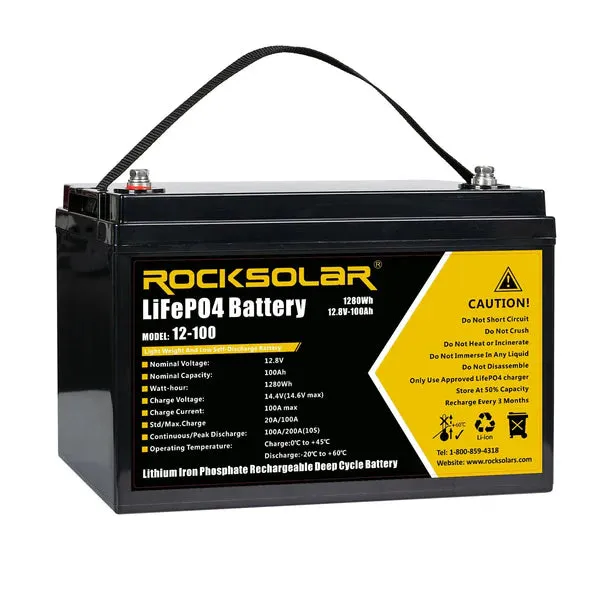

ROCKSOLAR 12V 100Ah Deep Cycle LiFePO4 Battery with BMS System

• 12V 100AH capacity
• Over 3500 cycle life with 100% discharge rate for ultra-long service life
• Consistent power: Flat voltage curve ensures steady power output, with no dramatic drop like SLA batteries
• LiFePO4 Battery Technology for reliable deep cycling
• Smart Battery Management System for safety and longevity
• Lightweight: Only 27 pounds for easy portability and installation
• Suitable for harsh environments: Built-in BMS provides protection against temperature fluctuations, short circuits, over-discharge, over-current, and overcharge, and ensures battery cell balancing.
• Operating temperature range for charging: 0C∽45C, discharging: -20~-60. BMS auto-shuts off the battery outside the working temperature.
• Warranty: 11-year warranty and 10 year service life

Wind Solar Hybrid Streetlight Controller Features

• Off-grid Efficiency: Tailored for wind and solar energy harnessing.
• MPPT Charging: Maximizes wind power conversion.
• PWM Dump Load & Solar Disconnect: Smart energy management.
• Dual Power Supply: Battery and solar integration.
• Customizable LCD Display: Real-time energy data and settings.
• Multiple Outputs: Three DC mode options.
• Circuit Protection: Dust, moisture, and static resistant coating.
• Safety Features: Comprehensive electrical protections.
• Lightning Protection Option: For high-risk areas (extra cost).
• Installation & Maintenance: Professional install advised; easy upkeep.
• Versatile Battery Compatibility: Adjustable for various types.
• Diverse Operation Modes: Light and time-controlled settings.
• Compatible with Varied Power Ratings: Suits multiple wind and solar setups.
• Aluminum Cooling: Efficient heat dissipation.
• Wide Temperature Tolerance: Operates in extreme climates.
• Compact & Lightweight: 2.35kg, 167x145.5x61.8mm.

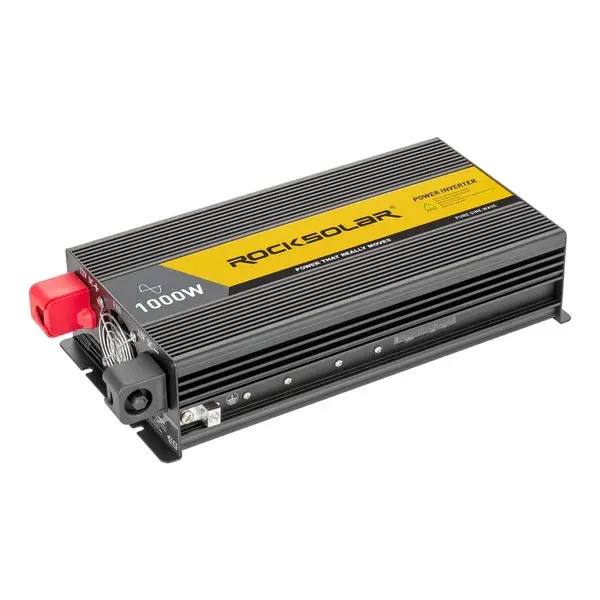

ROCKSOLAR 1000W 12V Pure Sine Wave Inverter

• Model: RSINV1000-001; 1000W rated power for high efficiency.
• Adjustable AC Voltage: 120Vac (100/110/120Vac).
• Frequency: 60Hz, alterable to 50Hz/60Hz.
• Pure Sine Wave output: Waveform Distortion ≤5%.
• Input: 12Vdc Battery Voltage, 9～17Vdc range.
• High efficiency: 90% at full load.
• Protections: High Temperature, Short Circuit, Overload, Overvoltage, Low Voltage.
• Dual USB Output: 5V, 2.1A for charging devices.
• Operating environment: -20～40℃, 10～90%RH.
• Lightweight: Net weight 2.82 kg, dimensions 357.6*171.9*78mm.
• Ideal for RVs, camping, backup power.
