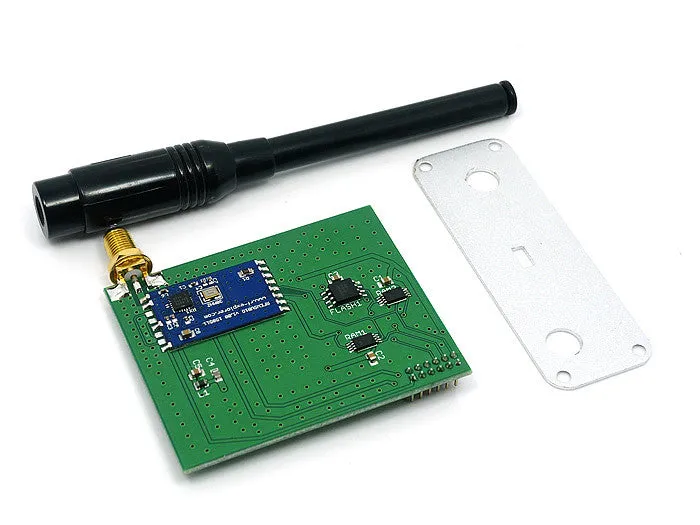

This Expansion Module is for your RF Explorer. It can be plugged in your RF Explorer unit to extend the coverage to 240-960Mhz frequency band. It is attached internally to the RF Explorer main board and exhibits a second antenna connector to cover the new band. It is easy to plug in your RF Explorer unit and is compatible with all RF Explorer models. This model extends band coverage to all popular sub-1Ghz ISM bands, including 315Mhz, 433Mhz, 868Mhz and 915Mhz, also including UHF TV, 70cm and 33cm HAM radio, and any frequency from 240Mhz to 960Mhz is covered.

Technical Data:

• Frequency band coverage: 240-960 MHz
• Standard SMA 50 ohms connector
• Amplitude resolution: 0.5dBm
• Dynamic range: -115dBm to 0dBm
• Absolute Max input power: 5dBm
• Average noise floor level (typical): -110dBm
• 50 ohms wideband Nagoya NA-773 telescopic antenna included
• Frequency stability and accuracy (typical): -10ppm
• Amplitude stability and accuracy (typical): -3dBm
• Frequency Span: 100MHz
• Frequency resolution: 1Khz
• Resolution bandwidth (RBW): automatic 3KHz to 600KHz
