RFEM6G PLUS Expansion

$ 89.06

$ 68.51

Title

DefaultTitle

Please select combo product attributes

The combo subtotal is $,SAVE $

Unavailable

Quantity - +

ADD TO CART

BUY IT NOW

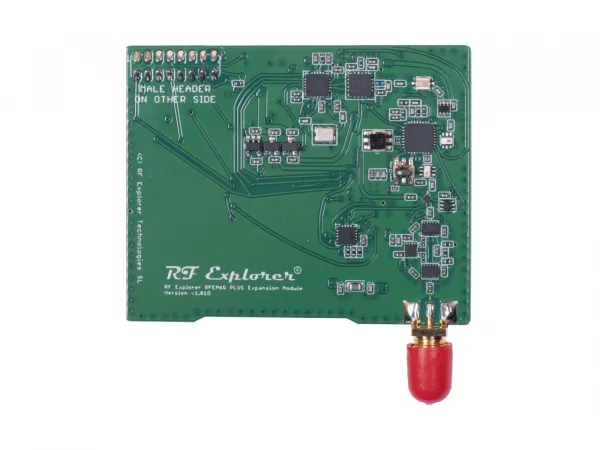

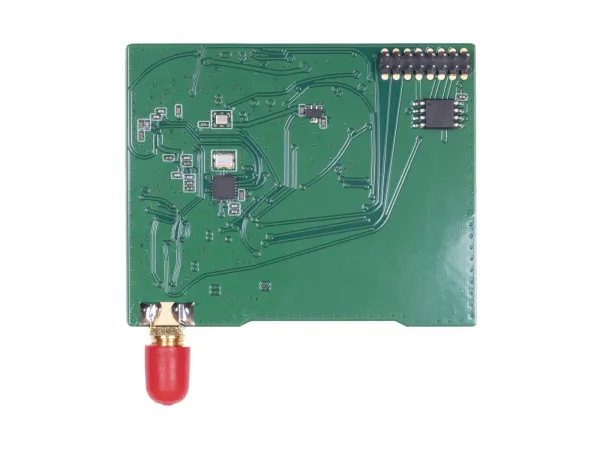

RF Explorer RFEM6G PLUS is an expansion module to convert the RF Explorer WSUB1G PLUS into a powerful 6G Combo PLUS Spectrum Analyzer, covering the full range starting at 50KHz up to 6.1GHz with no gaps or limitations.

Can be installed in WSUB1G PLUS and WSUB1G PLUS SLIM models
Internal LNA amplifier and selectable attenuator for additional power range handling.
Low-frequency support from 50KHz covering LF, MF, HF, VHF, and UHF
High-frequency support covering all ranges up to 6.1GHz with no gaps.
Ideal choice for all usable HAM bands.
Spectrum Analyzer mode with Peak Max and Hold, Normal, Overwrite and Averaging modes
Multi-platform Windows/Linux/MacOS Open Source software and API libraries

Technical Data:

Frequency band: Right connector: 240 – 6100MHz
Frequency span in a single sweep: 2 – 960MHz
Internal selectable LNA 25dB gain
Internal selectable Attenuators 30dB and 60dB
Wifi Analyzer for the 2.4GHz and 5GHz bands
Standard SMA 50 ohms connectors
Amplitude resolution: 0.5dBm
Dynamic range: -125dBm to 10dBm
Absolute Max input power: 30dBm
Average noise level (typical LNA): -125dBm
Frequency stability and accuracy (typical): -1.0ppm
Amplitude stability and accuracy (typical): -3dBm
Frequency resolution: 1Khz
Resolution bandwidth (RBW): automatic 2.6Khz to 600Khz
Support included for Windows, Linux and MacOS X

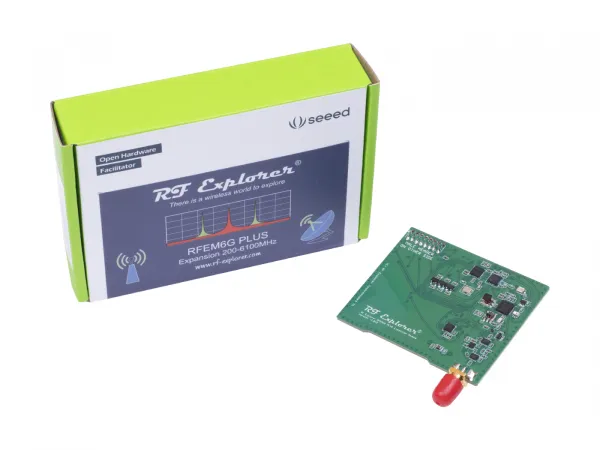

Part List:

1 x Expansion Board
1 x SMA nut
1 x SMA washer
