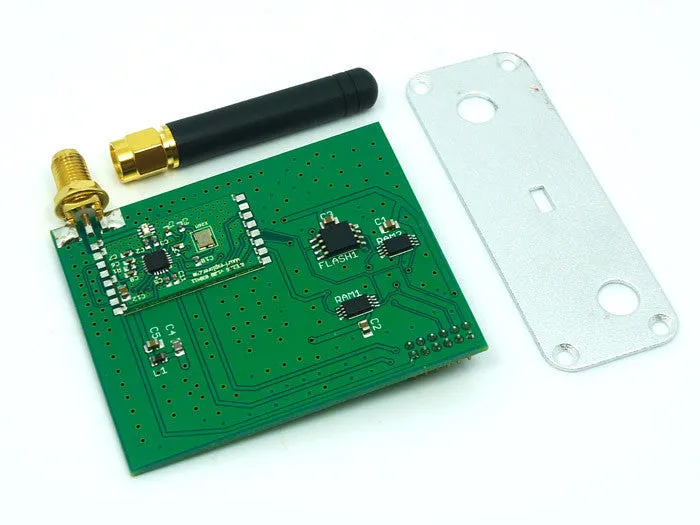

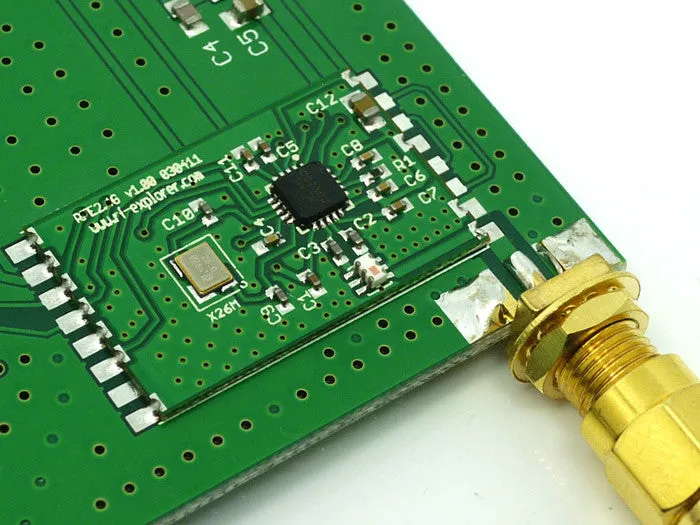

RFEM2.4G is our other great Expansion Module for RF Explorer. It can be plugged in your RF Explorer unit to extend the coverage to 2.4Ghz frequency band! It can be attached internally to the RF Explorer main board and exhibits a second antenna connector to cover the new band. It extends the internal FLASH and RAM memory for additional capabilities and is compatible with any RF explorer.

Technical Data:

• Frequency band coverage: 2400-2484 MHz
• Standard SMA 50 ohms connector, a matching antenna is included
• Amplitude resolution: 0.5dBm
• Dynamic range: -105dBm to -15dBm
• Absolute Max input power: 5dBm
• Average noise level (typical): -105dBm
• RF Generator amplitude: -30dBm to 1dBm
• Frequency stability and accuracy (typical): -10ppm
• Amplitude stability and accuracy (typical): -3dBm
• Frequency resolution: 1Khz
• Resolution bandwidth (RBW): automatic 58Khz to 812Khz
