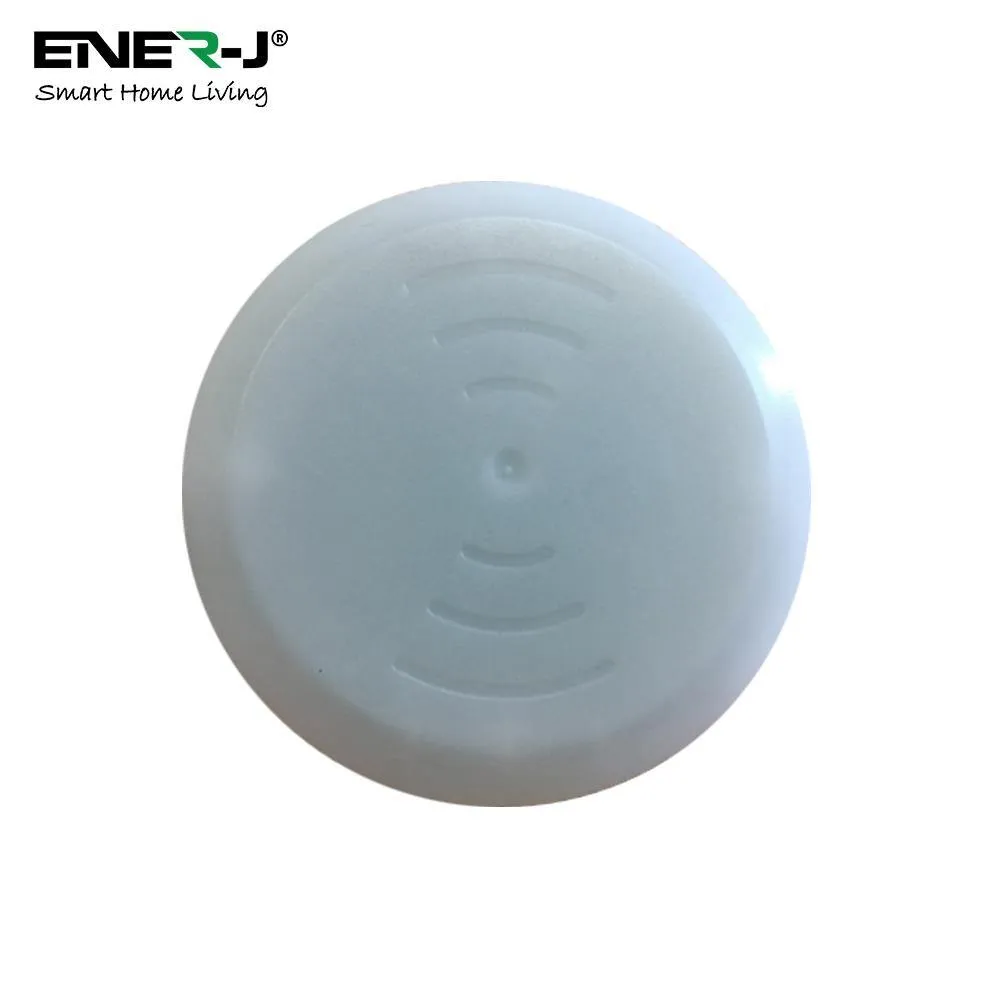

This Microwave sensor can be used with our Premium UFO LED High Bays T338 and T339 only

Technical Specification

• Product type: Microwave Motion Sensor
• Operating voltage: 12VDC/50mA
• HF system: 5.8GHz CW radar
• Detection angle: 30° ~ 150°
• Power consumption: <1W
• Detection range (DxH): Max. 16 x 12m
• Hold time: 30s ~ 30min.
• Daylight sensor: 2 ~ 500Lux; disable
• Stand-by period: 0s, 10s ~ 1h, ∞
• Stand-by dimming level: 10% ~ 50%
• Mounting: Indoors, ceiling & wall mounted
• Working temp: -20° ~ 60°
