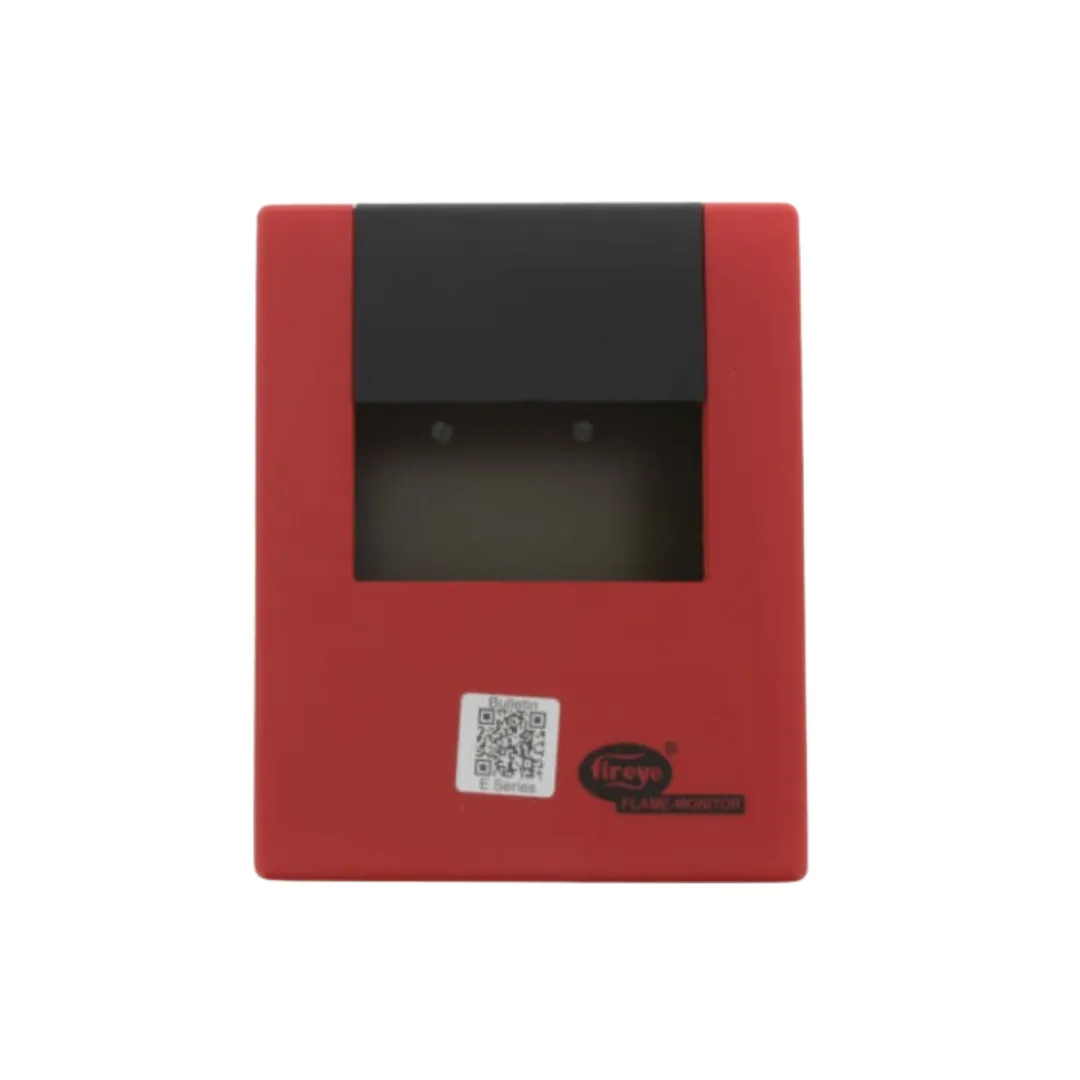

The Fireye® E110 FLAME-MONITOR™ System is a microprocessor based burner management
control system designed to provide the proper burner sequencing, ignition and flame monitoring protection on automatically ignited oil, gas, and combination fuel burners. In conjunction with limit and
operating controls, it programs the burner/blower motor, ignition and fuel valves to provide for
proper and safe burner operation. The control also provides current operating status and lockout
information in the event of a safety shutdown.

Features:

A non-volatile memory which allows the control to remember its history and present position
even when power is interrupted.
A constant flame signal read-out via display module or 0-10 VDC output (EPD
programmers only).
Read-out of main fuel operational hours and complete cycles via display module.
Modbus communications via RS485 multi-drop link.
Dipswitches located on the EP programmer to allow selectable purge time.
A run/check switch which allows the operator to stop the program sequence in any of three different positions (Purge, PTFI, or Auto).
Remote Display Capability.
Annunciate 16 additional interlocks using E300 Expansion Module.

Specifications:

Manufacturer: Fireye
Manufacturer Part Number: E110
Product Type: Chassis
Voltage: 120 VAC ( 10%, -15%) 50/60 Hz
Temperature Range: -40° to 140°F
Dimensions (LxWxH): 8.55 x 11 x 7.25 inches
Weight: 4.99 lbs.
