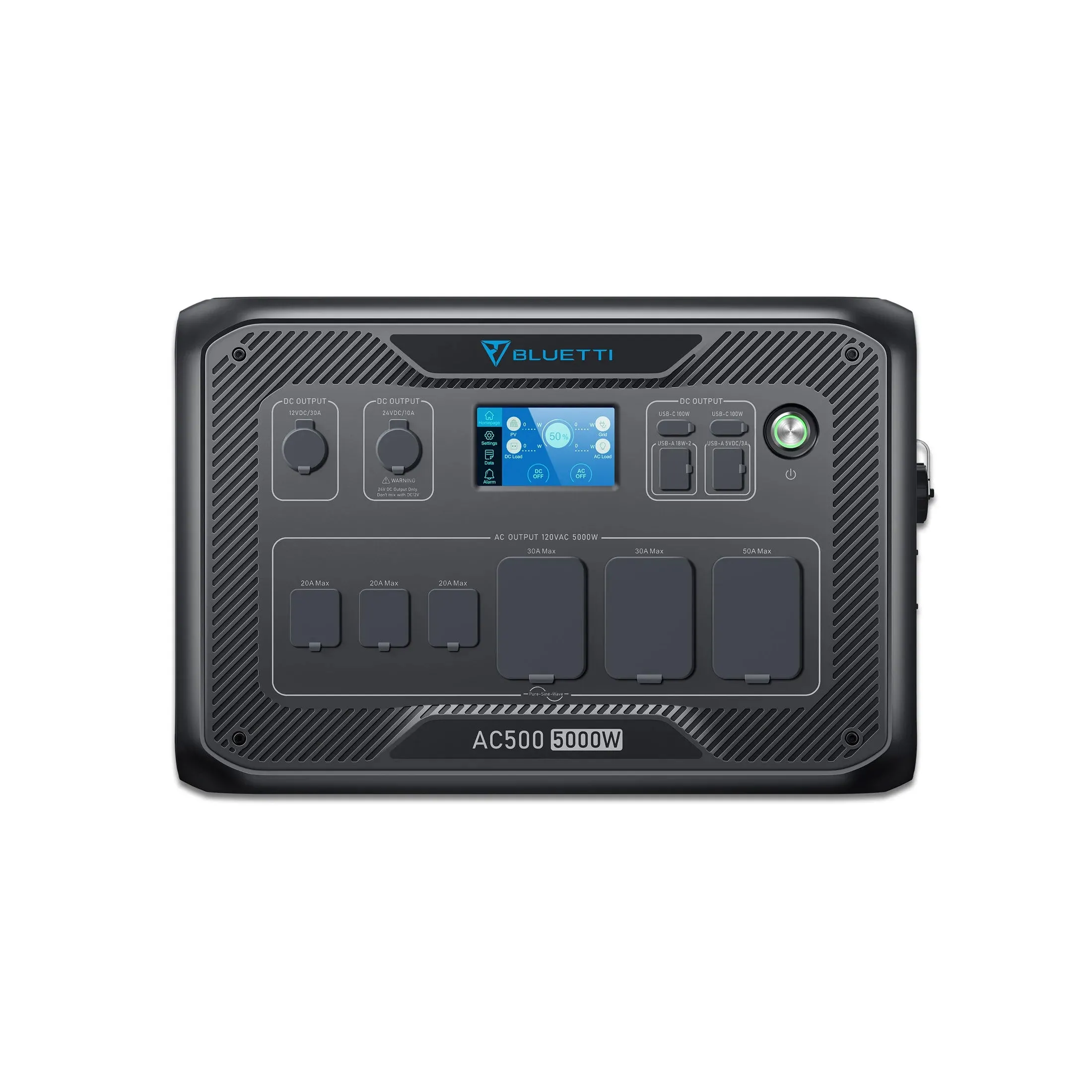

Name: BLUETTI AC500 Home Battery Backup Generator
SKU: 1219052

Product Details ＋

Give Your Family Peace Of Mind During Power Outages With The BLUETTI AC500

Imagine a world where power outages are no longer a cause for concern. A world where you can continue living comfortably, even when the grid goes down. That world is within reach, thanks to the BLUETTI AC500 Home Battery Backup Generator.

Are you in search of a powerful, adaptable, and efficient energy solution for your off-grid adventures, RV lifestyle, or emergency preparedness? Look no further than the BLUETTI AC500 Pure Sine Wave Inverter Module Generator. Designed to meet a wide array of energy needs with ease, this generator features a robust 5000W pure sine wave inverter and a modular design that empowers you to access reliable energy wherever and whenever you need it. Paired with BLUETTI’s B300K expansion batteries, the AC500 provides a seamless blend of convenience, flexibility, and dependable power.

Ready to break free from the grid? The BLUETTI AC500 Pure Sine Wave Inverter Module Generator delivers flexible, sustainable power in a durable, user-friendly design. Ideal for RV enthusiasts, off-grid homesteaders, and those preparing for emergencies, the AC500 offers the ultimate peace of mind and performance. Choose the AC500 today for clean, dependable energy that’s ready for whatever life throws your way.

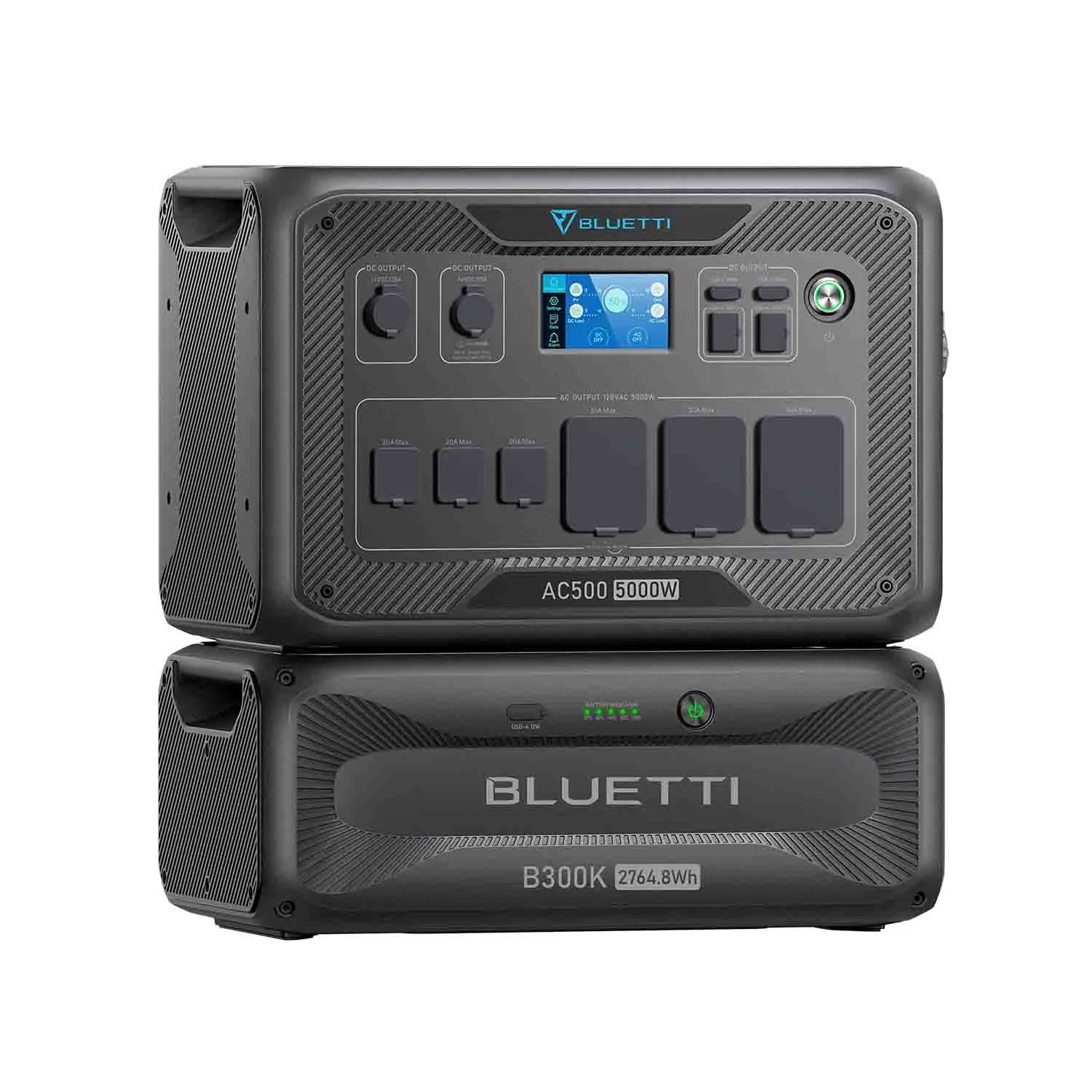

Please note the AC500 requires pairing with the BLUETTI B300K Expansion Battery to function.

BLUETTI AC500 Features

Modular Solar System for Home and Off-Grid Power

The AC500 will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy at home or on the road.

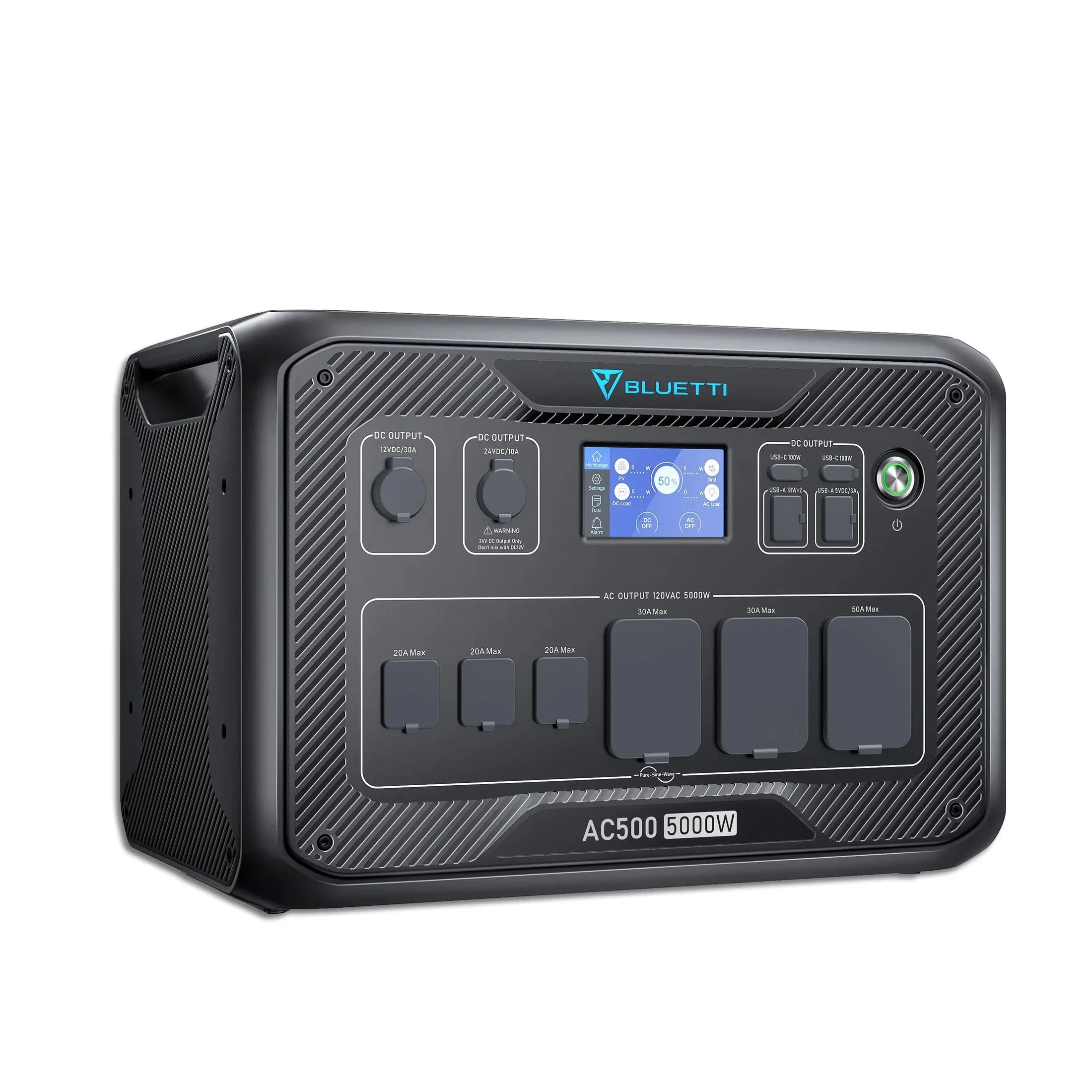

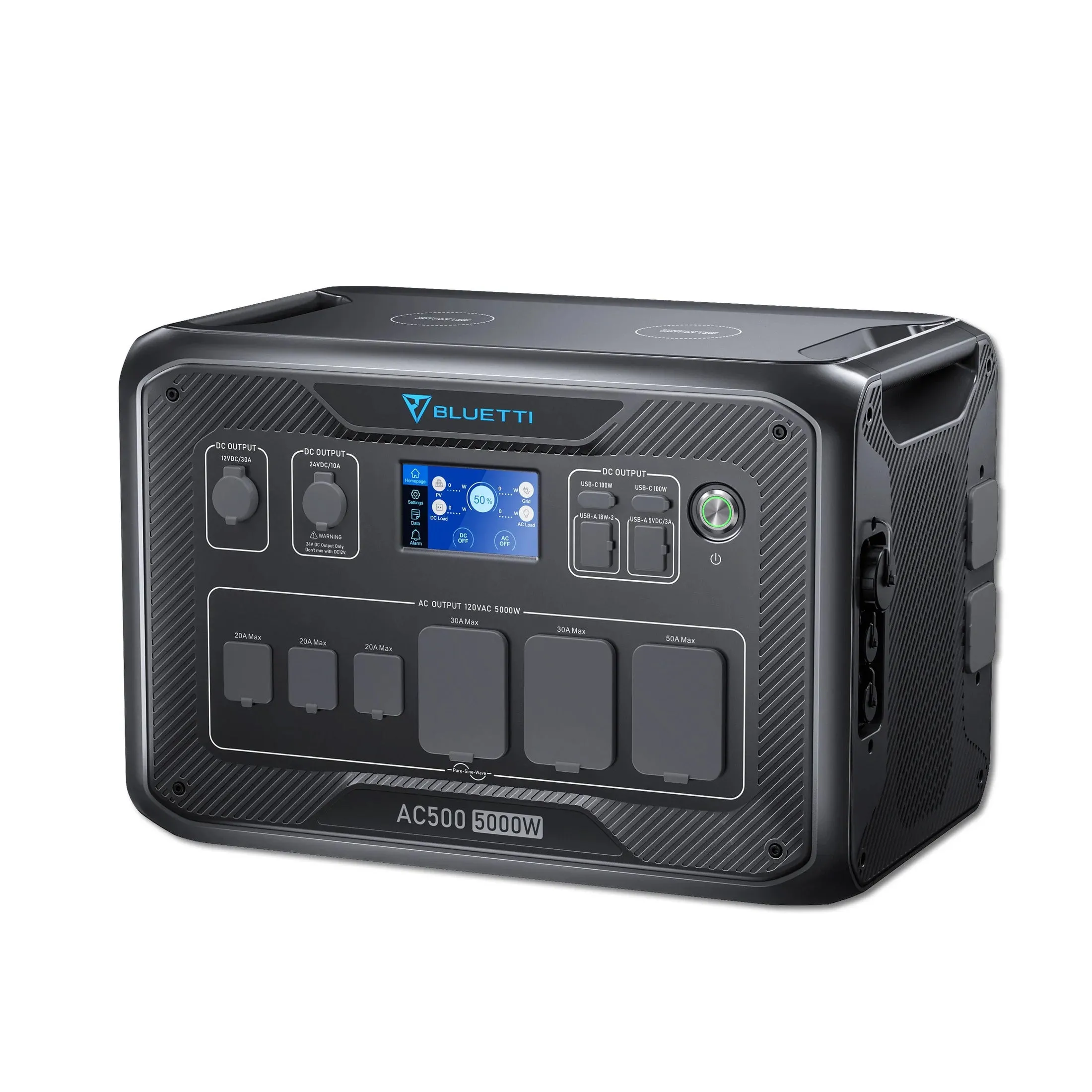

5000W Pure Sine Wave Inverter So You Can Power Almost Anything

This inverter delivers quality pure sine wave output and takes up to 10kW surge, ensuring anything you plug in will be running to its full functionality and capacity.

Easily and Quickly Recharge Your AC500 With AC Power or Solar Panels

No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W input rate. Get the system recharged before you pack up for the camping, and your power will be ready when you are.

Expand the AC500's Power Output to 18.4kWh So You Can Supply Your Family Power Security for a Day or Longer

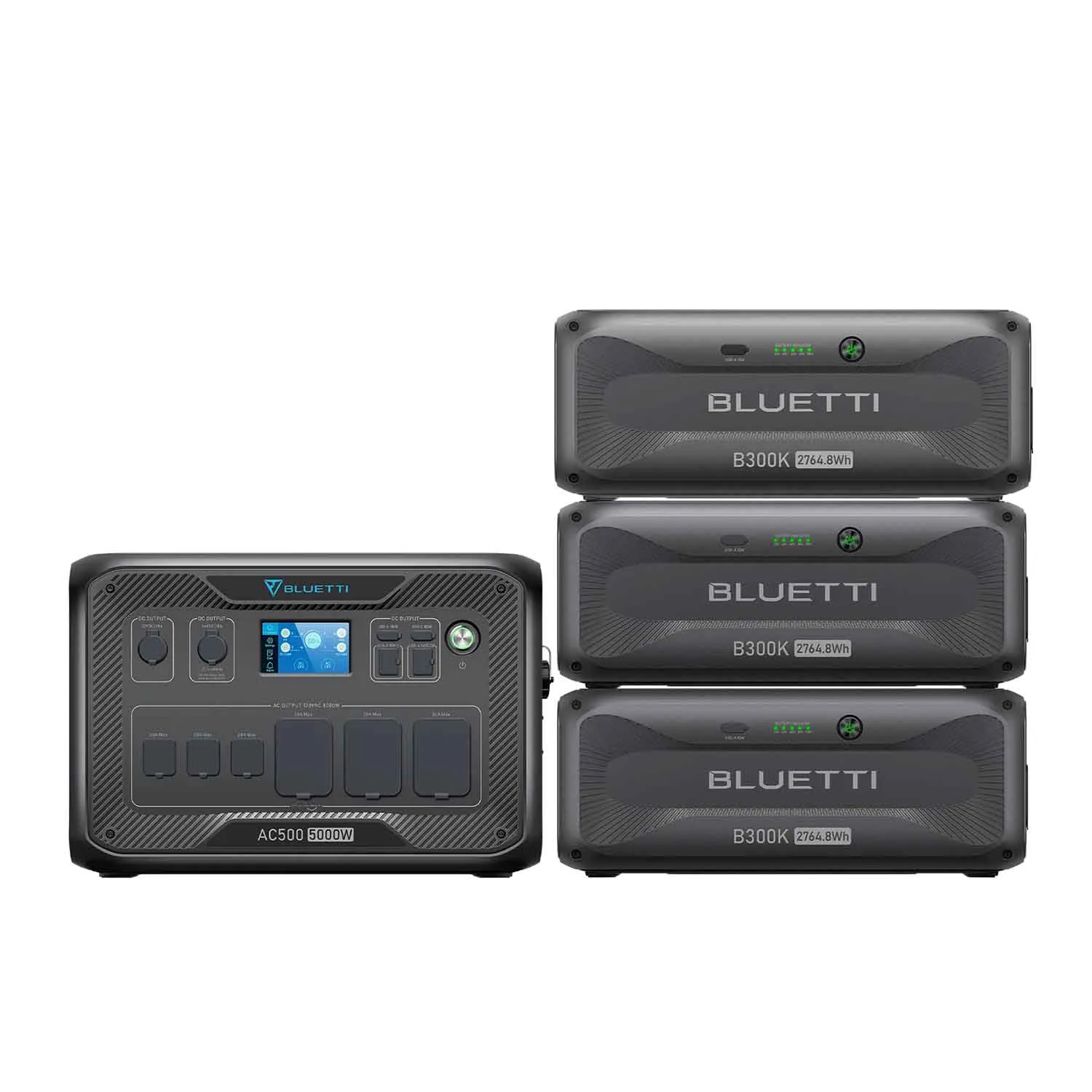

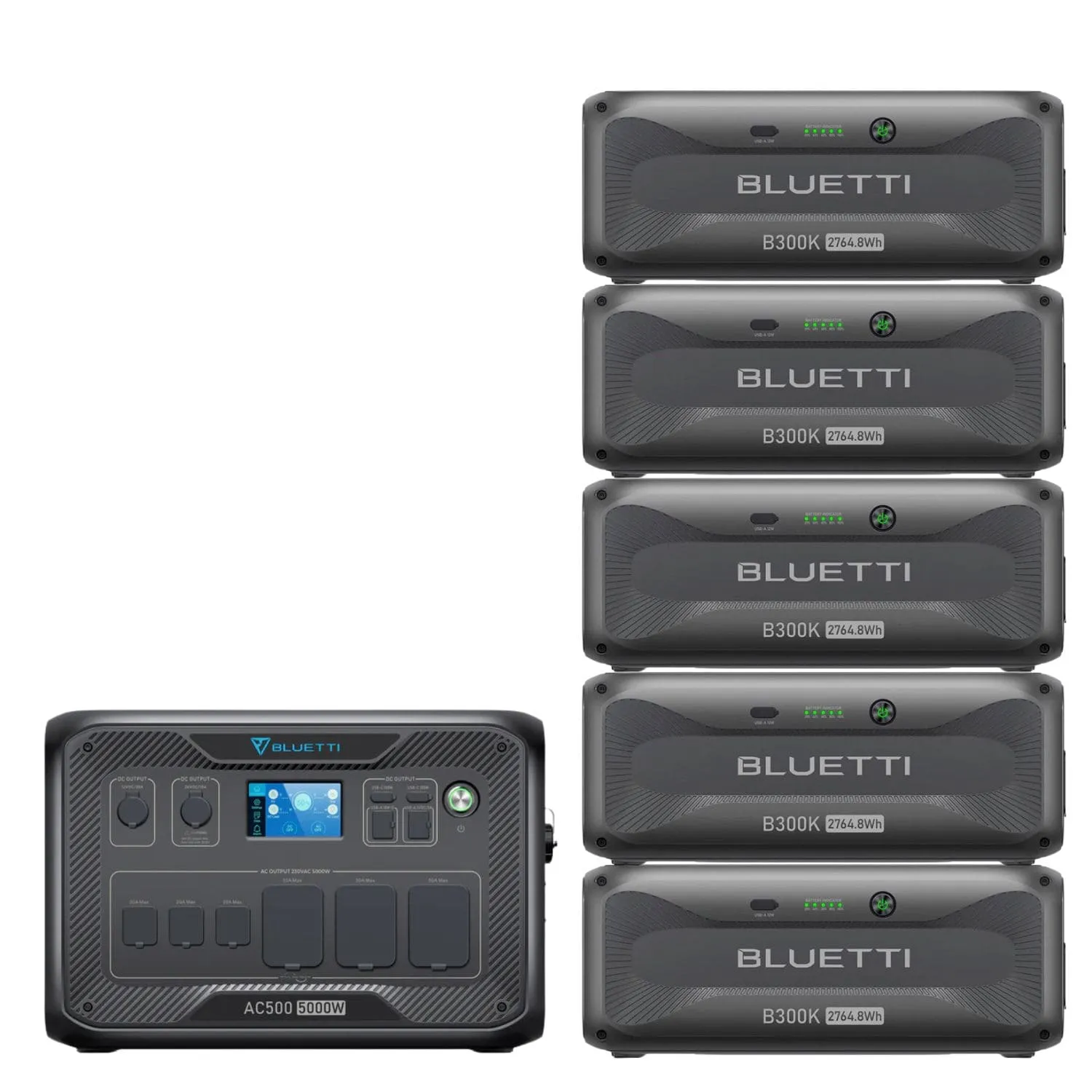

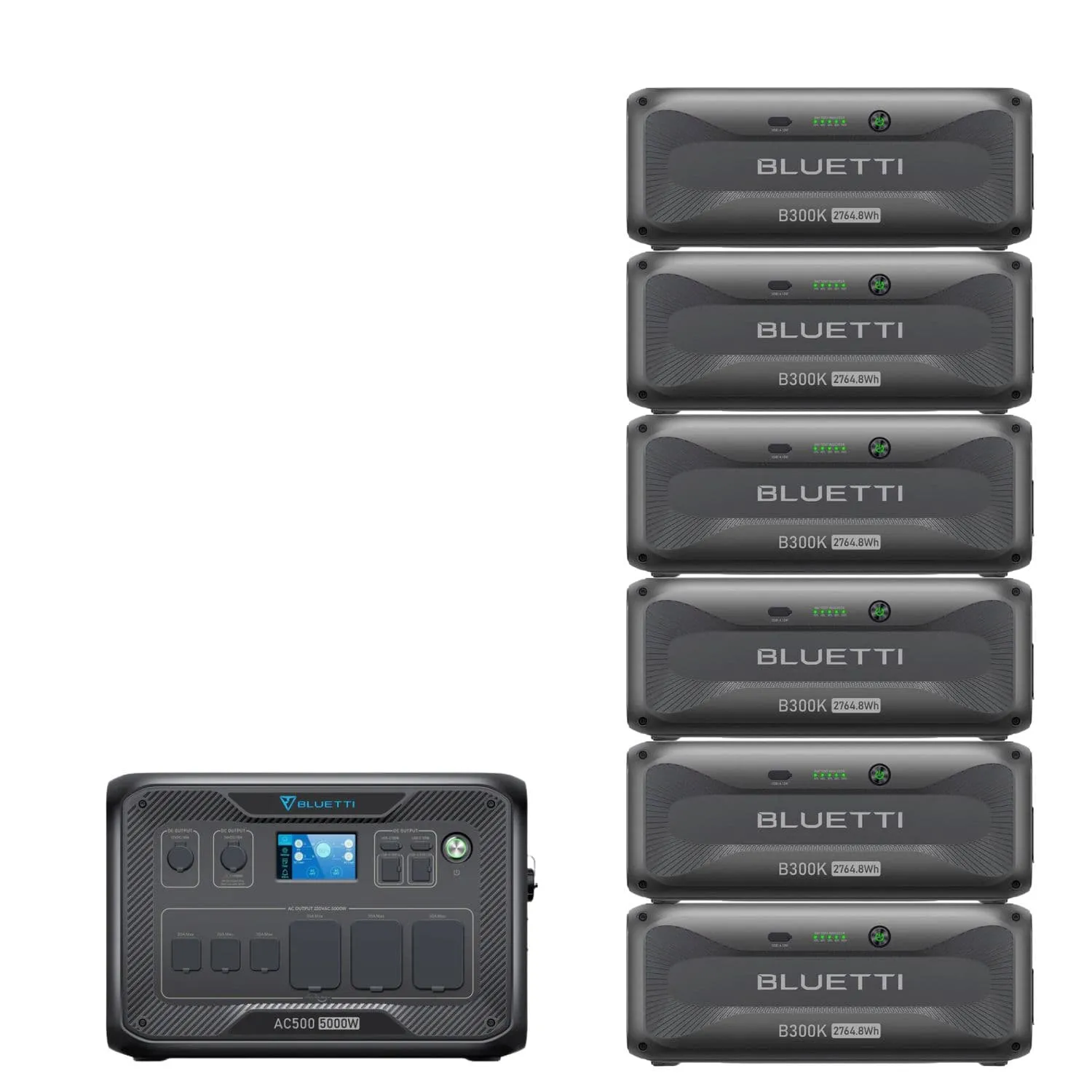

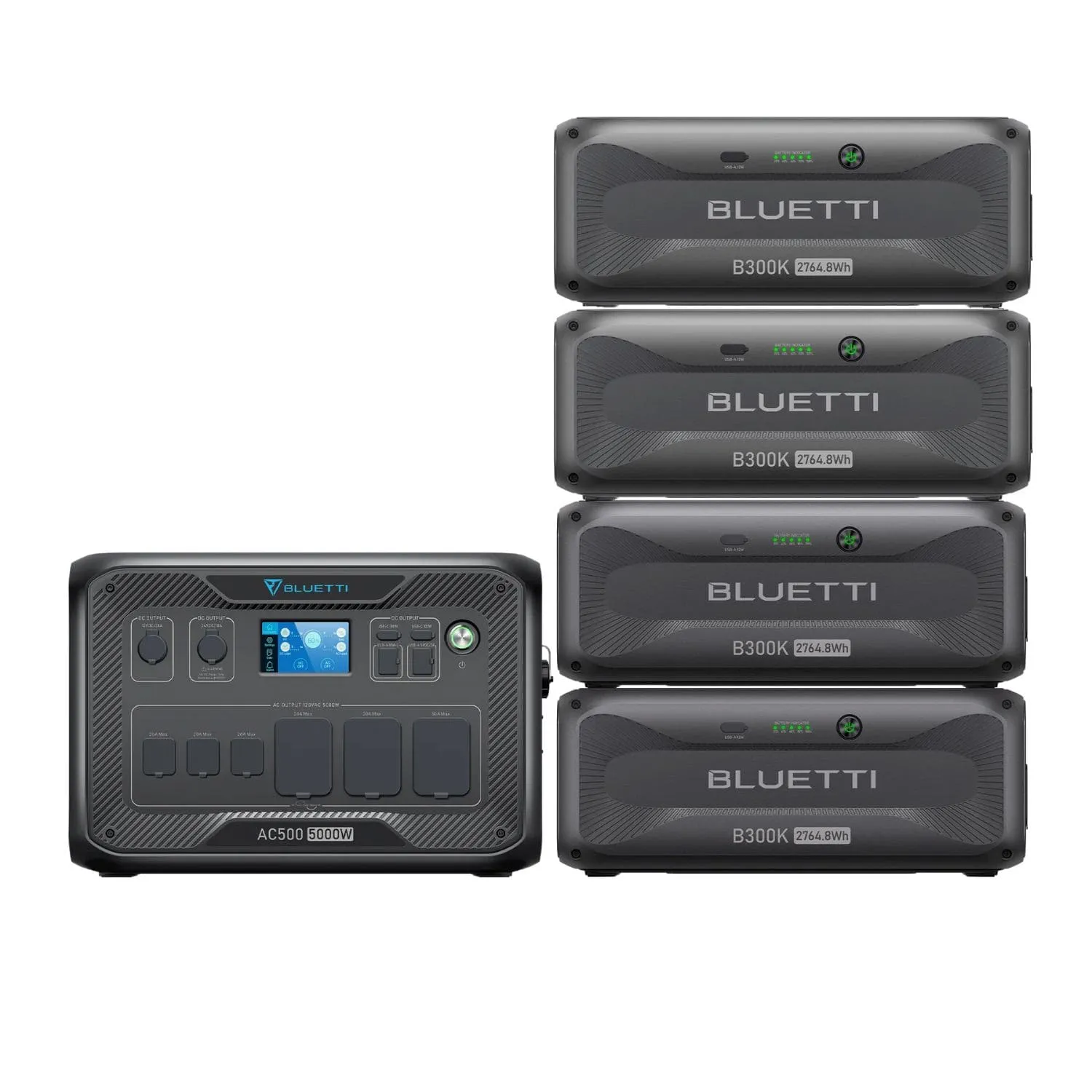

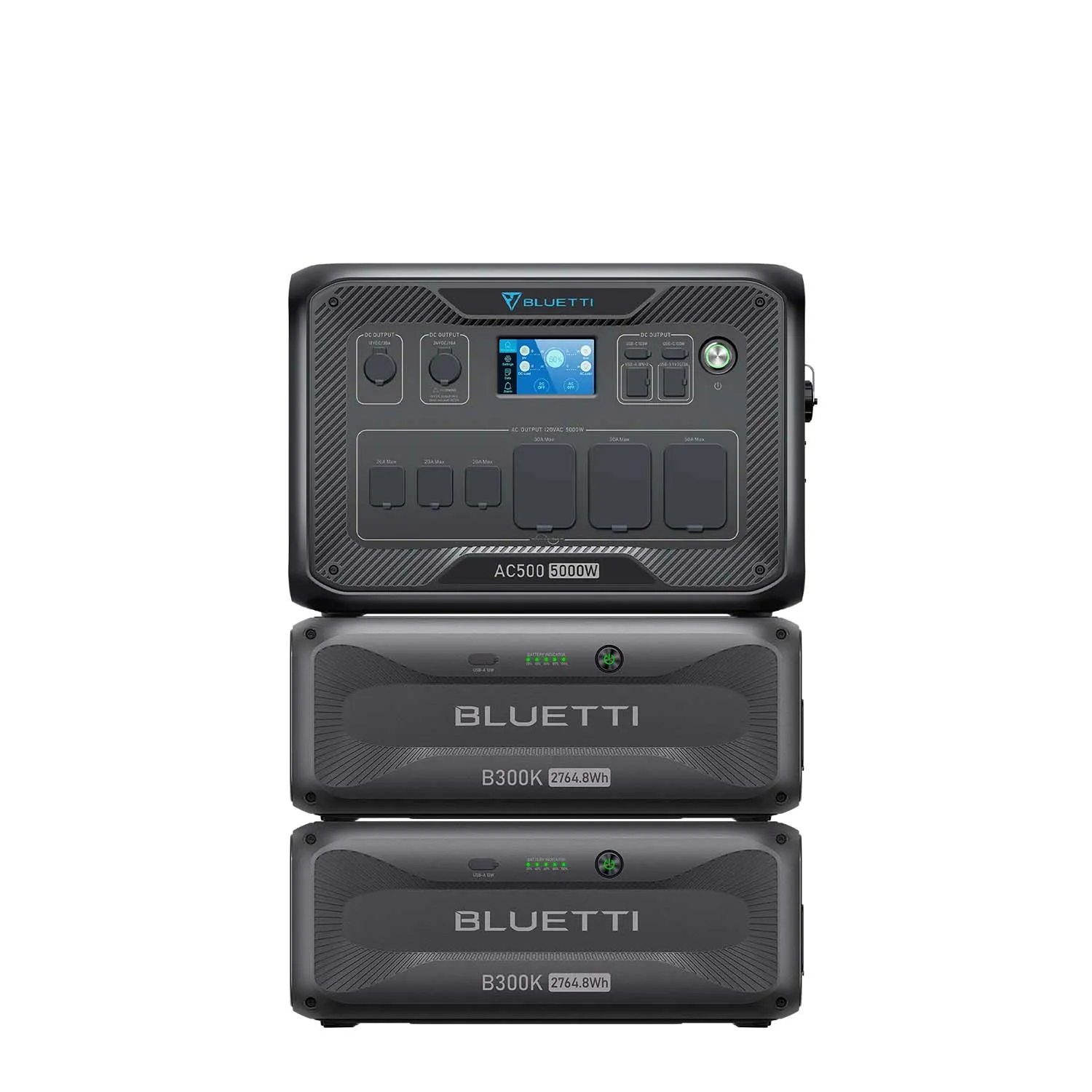

The AC500 is 100% modular and can accept up to 6 B300K expansion battery packs, adding up to an overall capacity of 18,432Wh – Power your whole family's basic needs for DAYS either in daily use or power outages!

Take Care of Your Heavy-Duty Equipment

Connecting two AC500 units allows you to can run 240V appliances with ease. Plus, with 12 B300K batteries, you’ll get an impressive capacity of 36,864Wh to reduce grid dependence and pay less for electricity.

What's Included

BLUETTI AC500 Pure Sine Wave Inverter

1 x BLUETTI AC500
1 x AC Charging Cable
1 x Solar Charging Cable
1 x Car Charging Cable
1 x P030A Fusion Box (if you purchase 2 x AC500)
1 x User Manual
1 x Certificate Card
1 x Warranty Card

BLUETTI B300K Expansion Battery

1 x BLUETTI B300K Expansion Battery
1 x Battery Expansion Cable (P090A)
1 x User Manual

BLUETTI AC500 Specifications

Output Specifications

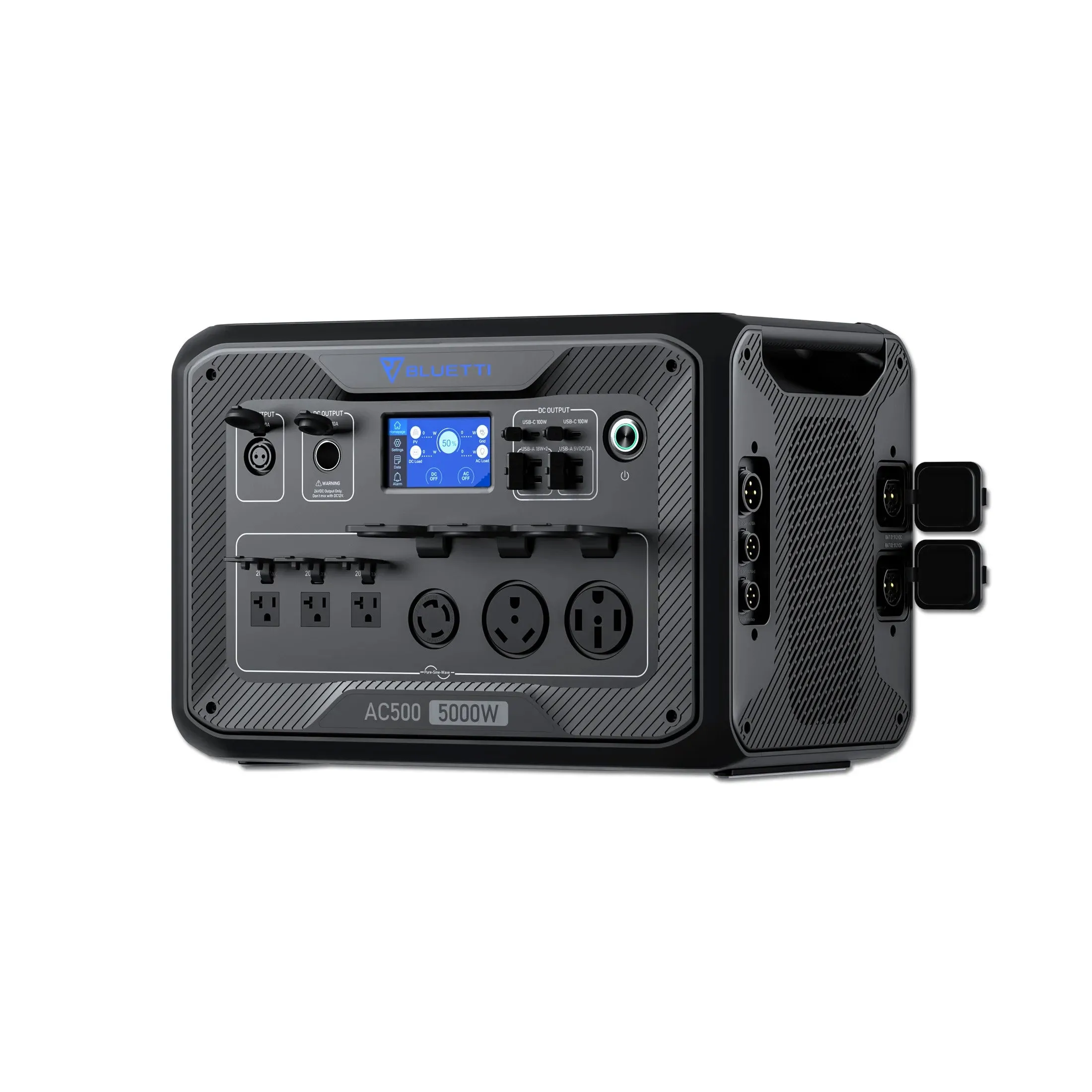

AC Outlets:	3 x 120V/20A Outlets 1 x 120V/30A L14-30 1 x 120V/30A TT-30 1 x 120V/50A NEMA14-50 5,000W in total
Inverter Type:	Pure Sine Wave
Surge Power:	10,000W
USB Port:	2 x 5V/3A USB-A 2 x 18W USB-A 2 x USB-C 100W Max.
DC Outlets:	1 x 12V/30A (RV Outlet) 1 x 24V/10A (Car Outlet) *All regulated

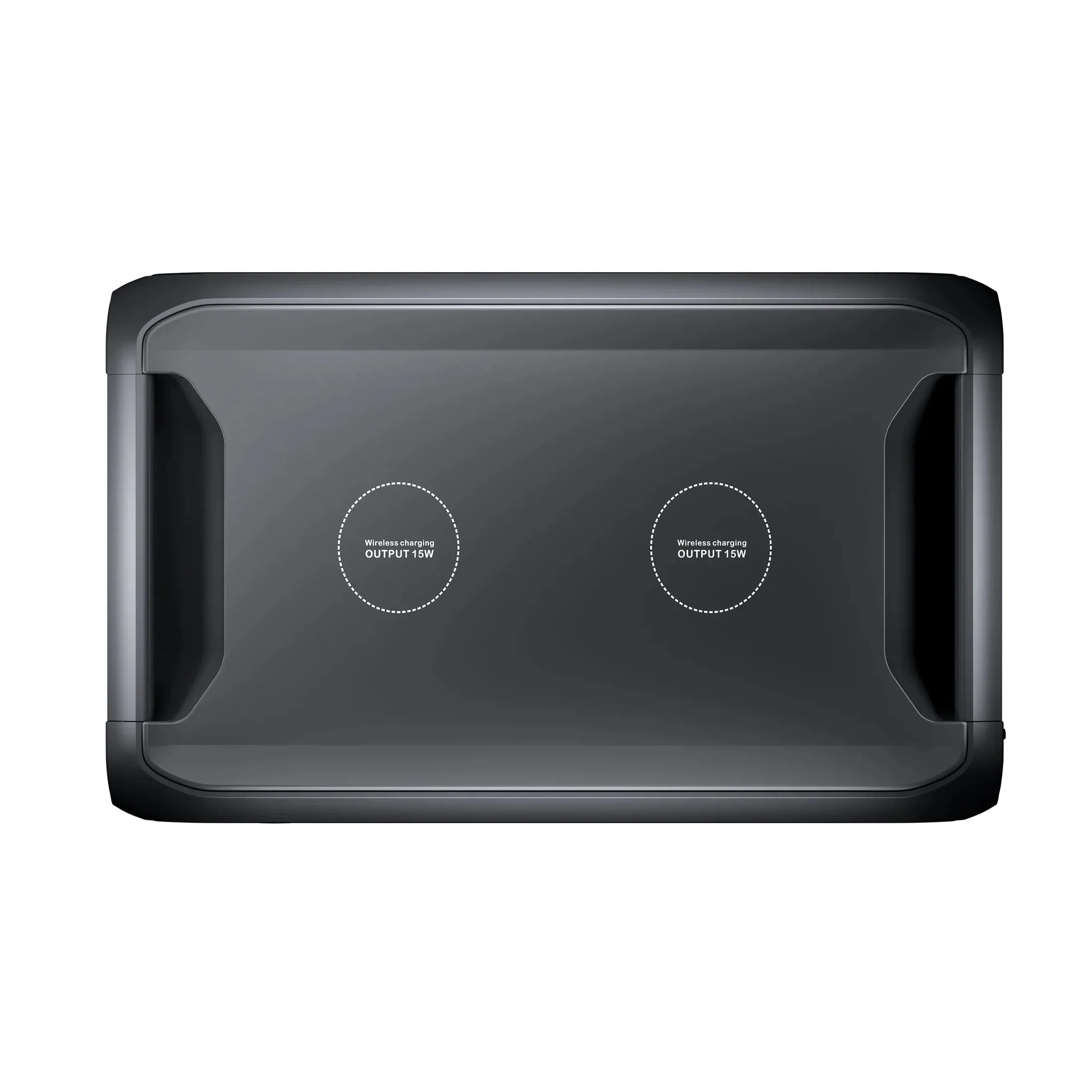

Wireless Charging Pad:	2 x 15W Max. (For Each)
Input Specifications
AC Charging Cable Input:	4,500W Max. (W/ 1*B300K), 5,000W Max. (W/ 2 or more B300K)
Solar Input:	3,000W Max., VOC 12-150VDC, 15A
Car Input:	12/24V from Vehicle Cigarette Lighter Port
Maximum Input:	4,500W (W/ 1*B300K), 8,000W (W/ 2 or more B300K) with AC and Solar Input Simultaneously
General Specifications
240V Split Phase Bonding	Yes
App Control	Yes, Wifi & Bluetooth
Scalability	Expandable W/Up to 6 x B300K Or 4 x B300
Simultaneous Recharge & Discharge	Yes
Weight	66.2lbs (30kg)
Dimensions (LxWxD)	20.5 x 12.8 x 14.1in (52 x 32.5 x 35.8cm)
Operating Temperature	-4-104℉ (-20-40℃)
Storage Temperature	-4-104℉ (-20-40℃)
Certification	UL Standard, CEC, DOE, FCC, CA Prop 65
Warranty	48 Months
BLUETTI B300K Expansion Battery Specifications
Battery Specifications

Capacity	3,072Wh (51.2V, 60Ah)
Type	LiFePO4 (Lithium Iron Phosphate)
Life Cycles	3500 Cycles to 80% Original Capacity
Shelf-life	Recharge to 80% Every 3-6 Months
Management System	MPPT Controller, BMS, etc.
Output Specifications
USB-C Port	1 x 100W Max.
USB-A Port	1 x 18W USB-A
*12V DC Outlet: **	1 x 12V/10A (Car Outlet) *All Regulated.
Input Specifications
AC Input	500W Max.
Solar Input	200W Max., VOC 12-60VDC, 10A
Car Input	12/24V from Cigarette Lighter Port
Max Input	700W, With AC Adapter Solar Input Simultaneously
Recharge Times
AC	≈ 6.5~7 Hours at 500W
Solar	≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature)
12V/24V Car Outlet (100W/200W)	≈ 30 or 15 Hours
AC Solar	≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature)
Solar Solar	≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED) (With prime sunshine, ideal orientation and low temperature)
Dual AC	≈ 5 Hours at 700W (Extra adapter REQUIRED)
General Specifications
240V Split Phase Bonding	Yes, work with AC300
Pass-through Charge	Yes
Weight	79.6lbs (36.1kg)
Operating Temperature	-4-104℉ (-20-40℃)
Storage Temperature	-4-104℉ (-20-40℃)
Certifications	UL Standard, CEC, DOE, FCC, CA Prop 65
Warranty	48 Months
Dimensions (LxWxD)	20.5 x 12.5 x 10.5in (52 x 32 x 26.6cm)

BLUETTI AC500 Manual

Frequently-Asked Questions

Q1: What is the output power of AC500?

4,500W Maximum with 1 x B300K Battery
5,000W Maximum with 2 x B300K Batteries

Q2: How many B300K packs can be connected to one AC500?

Q3: Can I use the AC500 alone?

No, it's 100% modular and needs to be connected to at least one B300K battery.

Q4: Can I use other brands' batteries?

No, the Bluetti AC500 is compatible with B300K batteries only.

Q5: How does the heating function work?

When the temperature is below 0℃, the battery will be automatically heated once AC or PV charging is activated (input power＞400W).

Q6: Is AC500 compatible with AC300's fusion box?

Yes.

Q7: How to connect AC500 to the main panel?

Low Voltage Area: Match the transfer switch and smart home panel to the main panel.
High Voltage Area: Match the transfer switch to the main power box.

Q8: Can fusion box connect with AC500 and AC300 simultaneously?

Not recommended.

Q9: What is the maximum power of the AC500 when using the fusion box?

1) 7,200W when connected with P030A
2) 10,000W when directly connected to the distribution box.
Note: The split phase function is only available for US Version.

Q10: Is there a UPS function when using fusion box?

No, but we do have EPS (emergency power supply).

Q11: What is the switching time of the UPS?

20ms.

Q12: Can I use third party solar panels to charge AC500?

Yes, the solar panels must meet the following conditions:
1) Total voltage:12-150V
2) Total power: 3000W max.
3) With MC4 connectors

Q13: Can I use rooftop solar panel to charge AC500?

Yes, but please note that your solar roof must meet:
1. No micro-inverter
2. Open circuit voltage 12-150V
3. With MC4 connectors
Note: When OCV exceeds 150V, you may use BLUETTI D300S* to step down the voltage to achieve solar charging.

Q14: Does the Bluetti AC500 support charging and discharging at the same time?

Yes.

Q15：How long will the AC500 run my device?

Running time = battery capacity x DoD x η ÷ device rated power DoD: Depth of Discharge, η: local inverter efficiency. For AC500, both DoD and η are 90%. If you run a 1,000W microwave oven with a AC500 B300K combo, the running time will be 3,072Wh × 90% × 90% ÷ 1,000W ≈ 2.5 hours
Note:
1) This formula doesn't apply to inductive loads with compressors, such as refrigerators, air conditioners, etc.
2) The above data is for reference ONLY.
