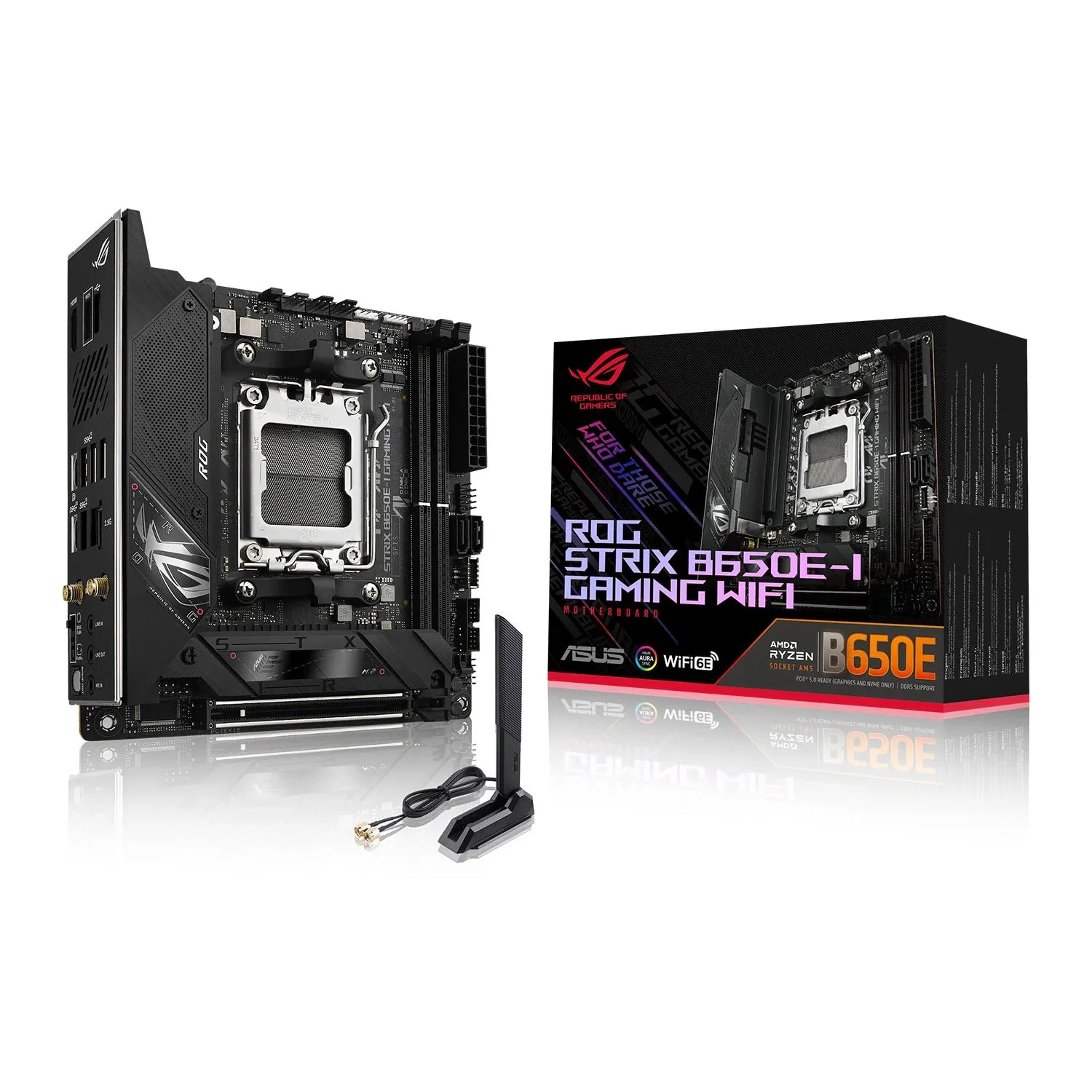

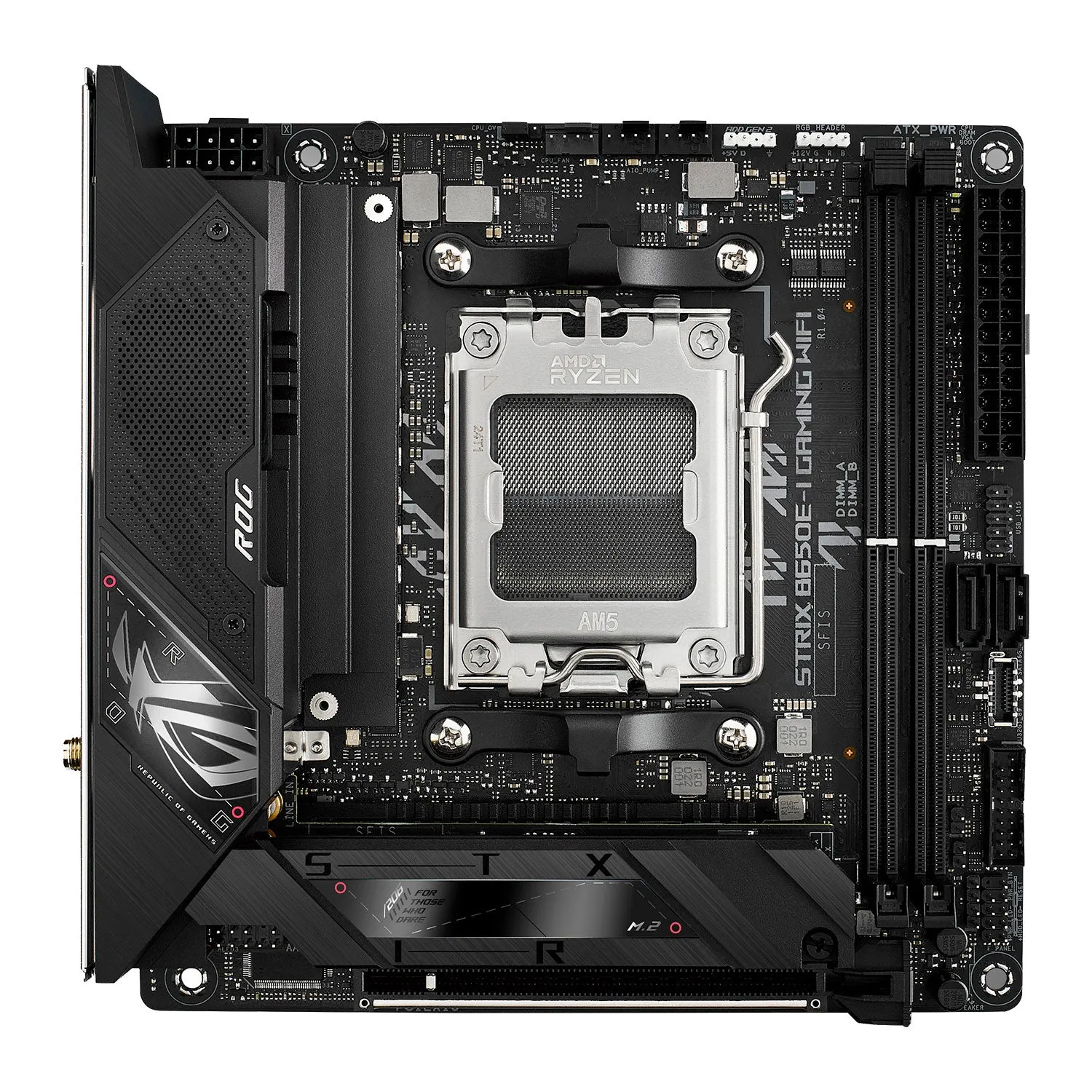

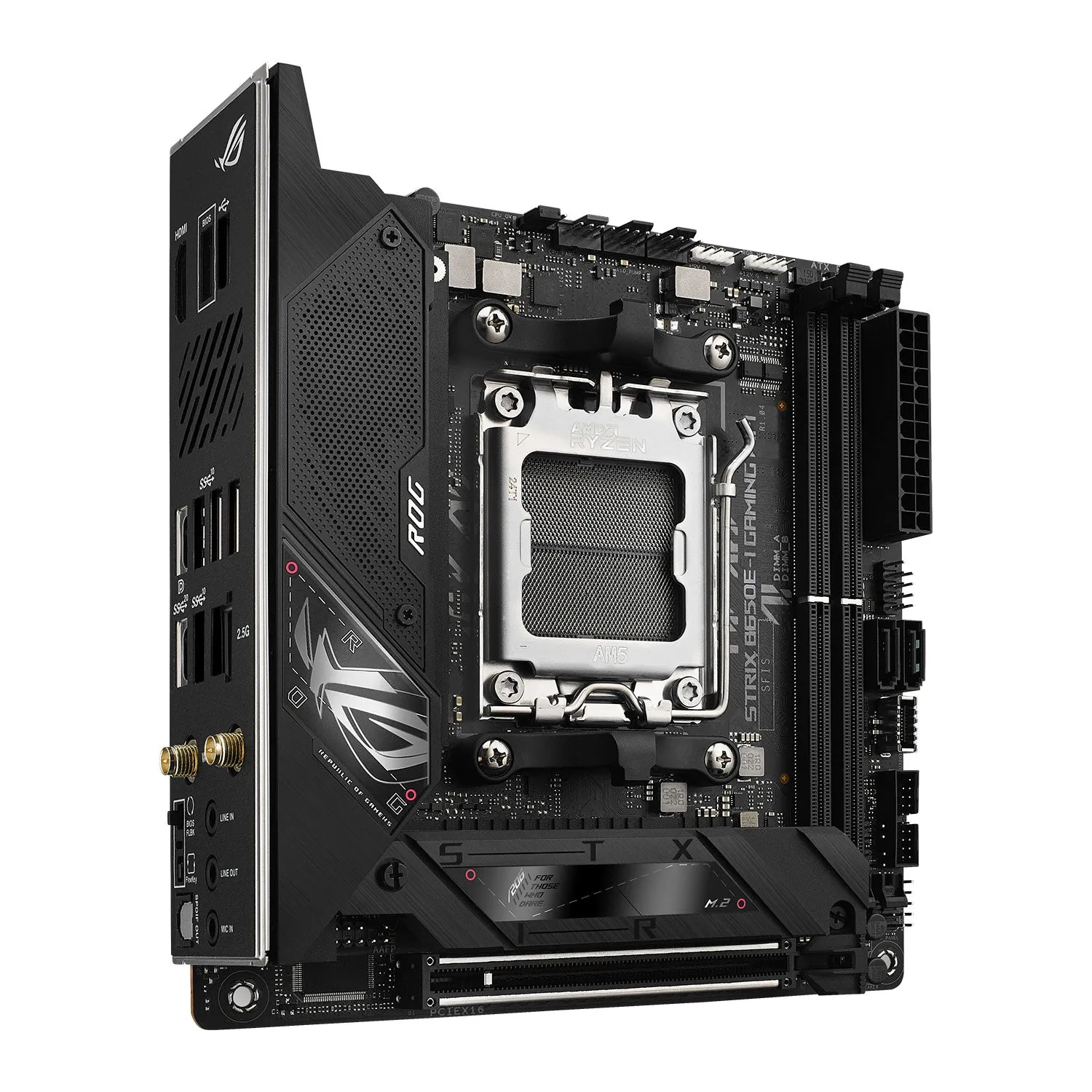

Asus Rog Strix B650E-I Gaming WiFi Motherboard

Experience lightning-fast performance and advanced gameplay with the Asus Rog Strix AMD B650E-I Gaming WiFi Mini ITX Motherboard. Boasting DDR5 and PCIe 5.0 technology, this board is designed for maximum speed and power. Its compact size and WiFi capabilities make it perfect for on-the-go gaming. Upgrade your gaming rig with the innovative Asus Rog Strix motherboard.

Specifications

Edition: ROG STRIX B650E-I GAMING WIFI
Form Factor: Mini-ITX
CPU Socket: AM5
Chipset: AMD B650
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (R/U): UDIMM (Unbuffered)

Memory Speed (Mhz)

• DDR5 - 4800
• DDR5 - 5000
• DDR5 - 5200
• DDR5 - 5400(OC)
• DDR5 - 5600(OC)
• DDR5 - 5800(OC)
• DDR5 - 6000(OC)
• DDR5 - 6200(OC)
• DDR5 - 6400 (OC)

Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
On-Board Graphics Connectors: HDMI 2.1

Expansion Slots

• 1 x M.2, 22-42/60/80, PCIe Gen4x4
• 1 x M.2, 22-42/60/80, PCIe Gen5 x4
• 1 x PCIe 5.0 x16
• 2 x SATA 6GB/s

SATA Support: SATA3
Storage Mode Support: RAID 0, RAID 1

Internal I/O

• 1 x 24-pin (Power)
• 1 x 4-pin AIO Pump Connector
• 1 x 4-pin CPU Fan Connector
• 1 x 4-pin System Fan Connector
• 1 x 8-pin (Power)
• 1 x Addressable Gen 2 Header
• 1 x Aura RGB Header
• 1 x Clear CMOS Header
• 1 x CPU_OV jumper
• 1 x Front Panel Audio Header
• 2 x M.2
• 2 x SATA III - 6Gb/s
• 1 x speaker header
• 1 x System panel connector
• 1 x Temperature Sensor Header
• 1 x USB 2.0 Header
• 1 x USB 3.2 Gen1 Header
• 1 x USB 3.2 Gen2 Header

Network Interface Type

• 802.11ax Wi-Fi LAN
• Wired 2.5 Gigabit LAN (10/100/1000/2500)

Network Chip/Modules

• 1 x 2.5 Gigabit LAN
• 1 x 802.11ax WiFi 6E BT5.2
• 1 x Intel® Wi-Fi 6E AX210 BT5.2

Rear I/O Connectors

• 1 x BIOS Flashback Button
• 1 x HDMI 2.1
• 1 x Line In
• 1 x Line Out
• 1 x Mic-In
• 1 x RJ-45
• 1 x S/PDIF-Out (Optical)
• 2 x USB 2.0
• 4 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen2 Type-C
• 1 x USB 3.2 Gen2x2 Type-C
• 1 x WiFi / Bluetooth Module
