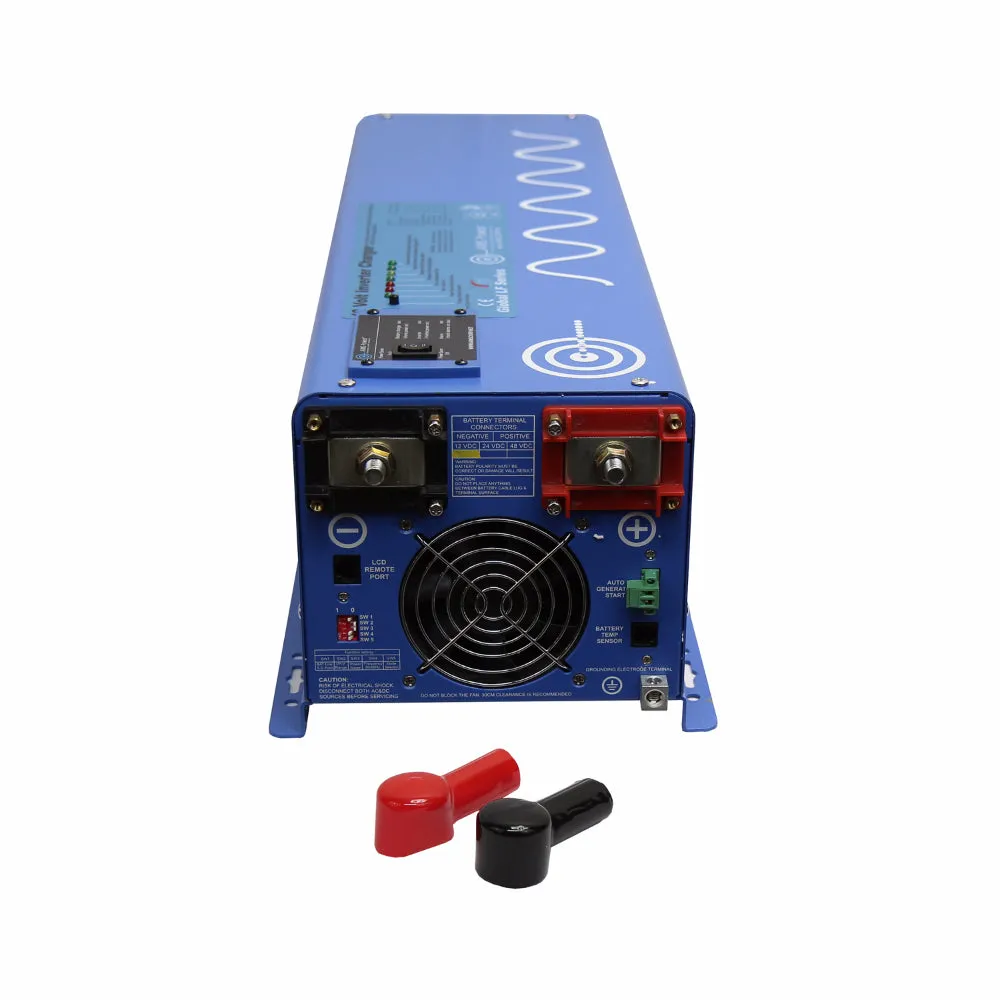

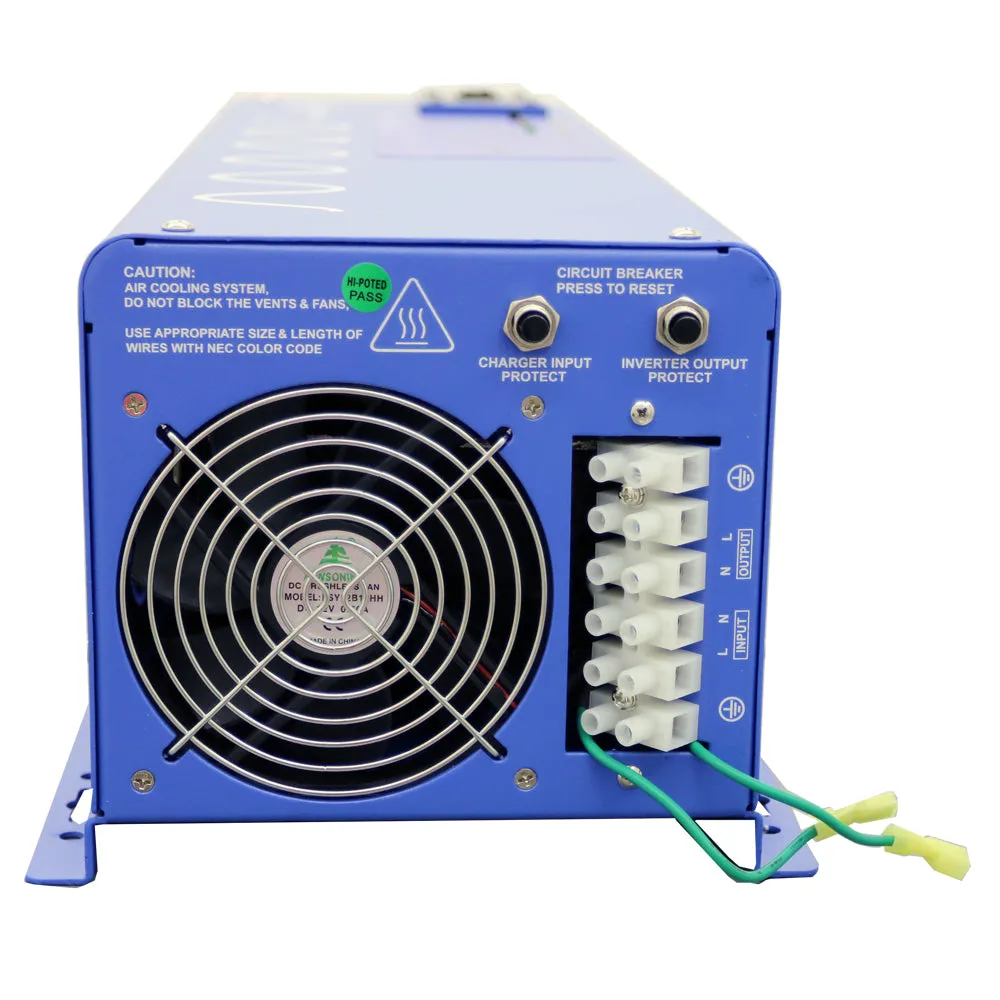

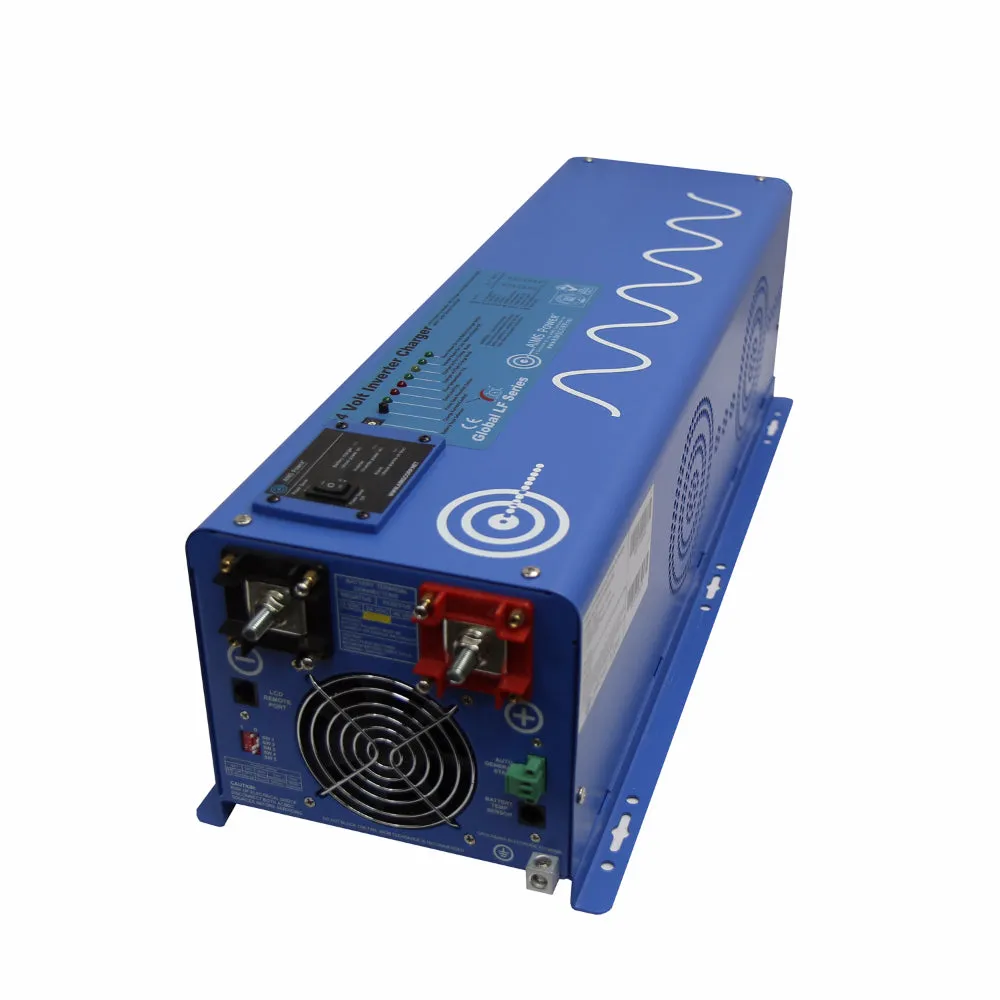

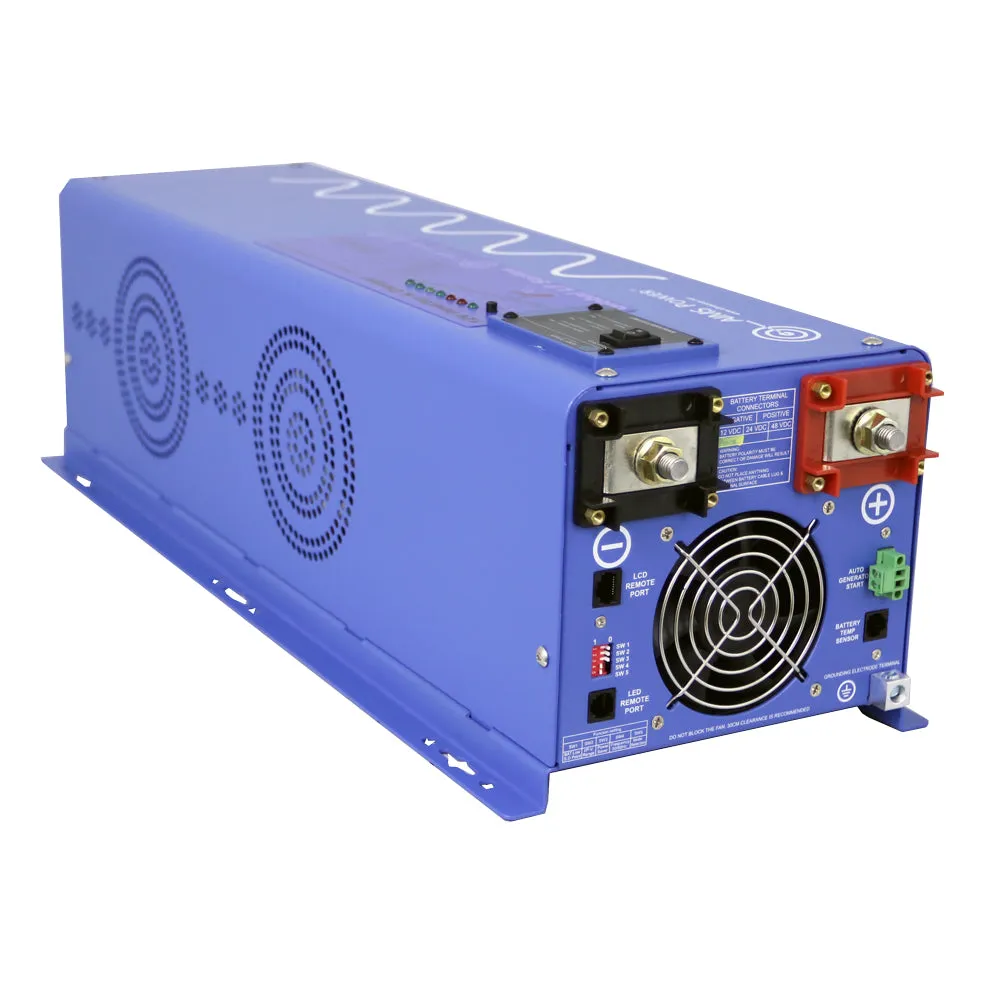

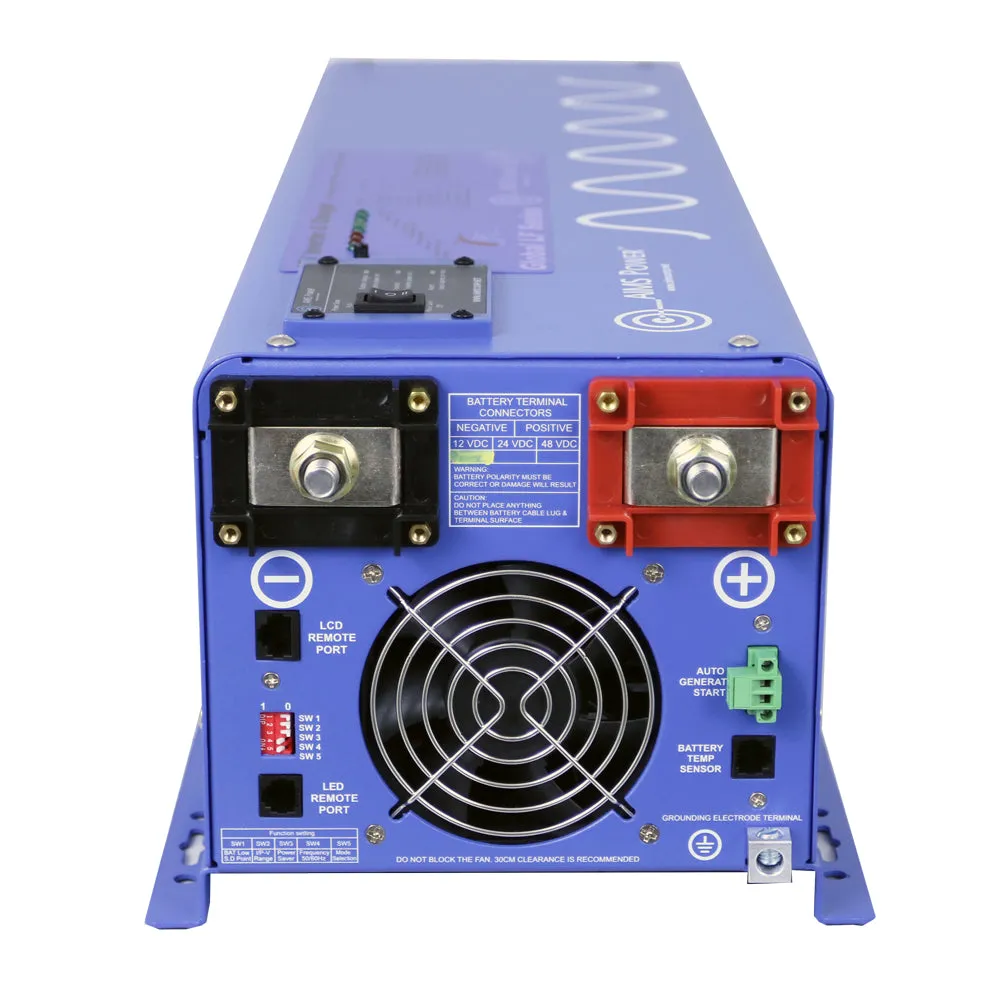

Experience the power of the AIMS Power 4000 Watt 24 Volt Pure Sine Low Frequency Inverter Charger. Perfect for eco-conscious power systems, this inverter charger offers high wattage capacity and optimal 24-volt efficiency. It’s trusted in industrial settings and by savvy consumers for renewable solar setups, off-grid homes, and emergency backup power. With a robust 300% surge capability, it handles tools with startup surges like air compressors with ease. It features Auto Frequency Detection and a battery priority mode for efficient power usage. Unleash its potential on your houseboat or any adventurous endeavor. Now available for purchase!
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- Global Usability: Auto Frequency Detection for worldwide compatibility.
- Versatile Applications: Perfect for RVs, motorhomes, charter buses, and marine environments.
- Battery Priority Mode: Directly runs off a battery backup system.
- Power Saver Mode: Conserves energy by pulsing every 3 seconds, ideal for intermittent loads.
- Reliable Surge Capacity: 12000 watts surge for 20 seconds with 300% surge capability.
Specifications
Specifications
Output:
- Continuous Output Power: 4000 Watts
- Surge Rating: 12000 Watts (20 Seconds)
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Output Voltage: 100-110-120Vac
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz /- 0.3Hz / 60Hz /- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: < 10% DC
- Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Input:
- Nominal Input Voltage: 24.0Vdc
- Minimum Start Voltage: 20.0Vdc
- Low Battery Alarm: 21.0Vdc-22.0Vdc
- Low Battery Trip: 20.0Vdc-21.0Vdc
- High Voltage Alarm: 32.0Vdc
- Low Battery Voltage Restart: 26.6Vdc
- Idle Consumption: 52.5 Watts
- Idle Consumption with Power Saver Mode ON: <25 Watts
Charger:
- Output Voltage: Depends on battery Type
- Charger Rate: 50A
- Over Charge Protection Shutdown: 31.4V
- Selectable Charge Setting Based on Battery Type
- Adjustable Charge Current: off-20%-100%
- Four-Stage Smart Charger
Transfer Switch:
- 40 Amp Automatic Transfer Switch
- Transfer Time: 10 ms (max)
Dimensions & Weight
Dimensions & Weight
- Unit Weight: 62 lbs.
- Unit Size: L x W x H: 27.88 x 8.74 x 7.10 inches
- Shipping Weight: 72 lbs.
- Shipping L x W x H: 30.5 x 14.25 x 13.75 inches
