Product Details
＋
LIST PRICE: $806.00
ADR-PS-SE
Power supply with optional battery backup for all 3000 and 8000 Series Exit Devices with Motorized Latch Retraction (SE) option.
Function- This power supply is designed for the Motorized Latch Retraction (SE) option on Adams Rite exit devices. It operates at 24 VDC to power up to two SE exit devices in sequential or independent modes. The PS-SE is also equipped with a fire alarm disconnect interface circuitry.
More Details Below
Features
| Certifications | UL listed |

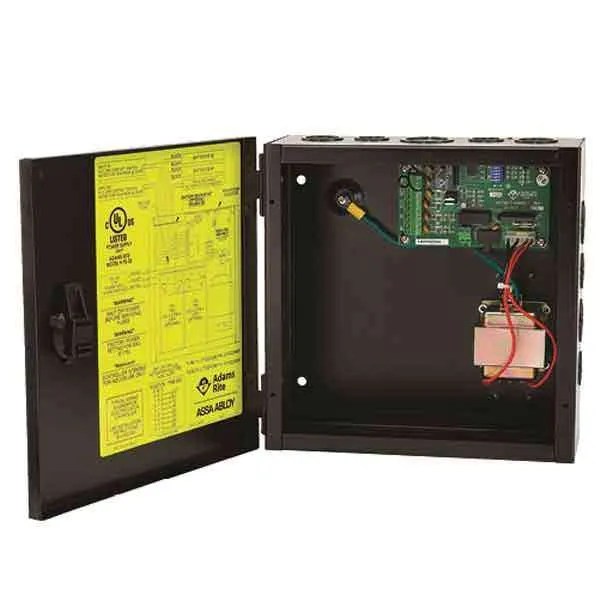

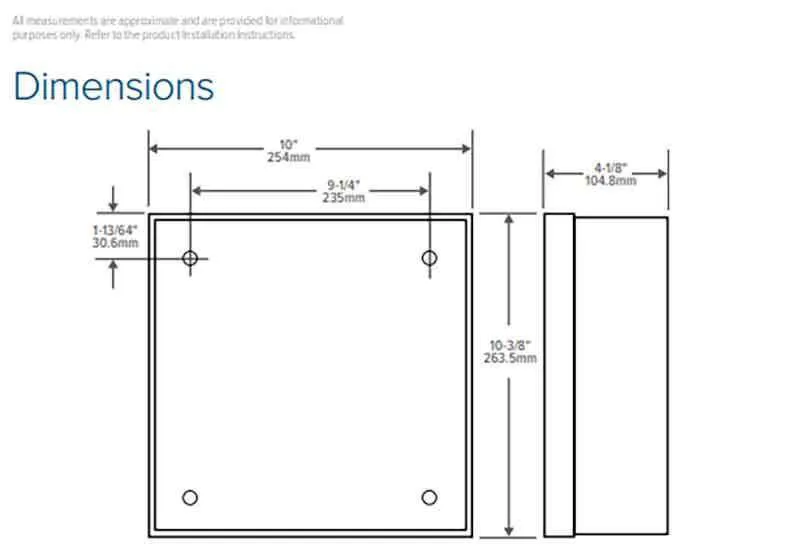

| Housing | Hinged, steel cabinet measures 10" x 10-3/8" x 4-1/8" [254 mm x 263.5 mm x 104.8 mm]. Black, baked enamel finish, with knockouts for conduit connections. Sized to accommodate two sealed, lead acid batteries (7AH, not included). |
| Operating Modes | The PS-SE is designed to power up to two 3000 SE or 8000 SE exit devices in the following operating modes: - Near Simultaneous Mode – A single input switch (dry contact) operates two devices with less than one second delay. Ideal for double-door applications. - Independent Mode – Each SE exit device is controlled by its own input switch. |
|
Input Power |
115 VAC, 0.7A |
| Primary Fuse | The PS-SE has two user-serviceable fuses: - F1: Transformer output: 2A/250V 5x20MM - F2: Transformer input: 2A/250V 5x20MM |
| Open Hold Times | The PS-SE has two open hold timers. Hold open time settings are adjustable from 2-60 seconds. |
|
Output Voltage |
2 Amp @ 24VDC |
