Product Details
＋
240 Watt UFO LED High Bay; 5000K; 34800 Lumens; 277-480 Volt; Black Finish
65-808R2

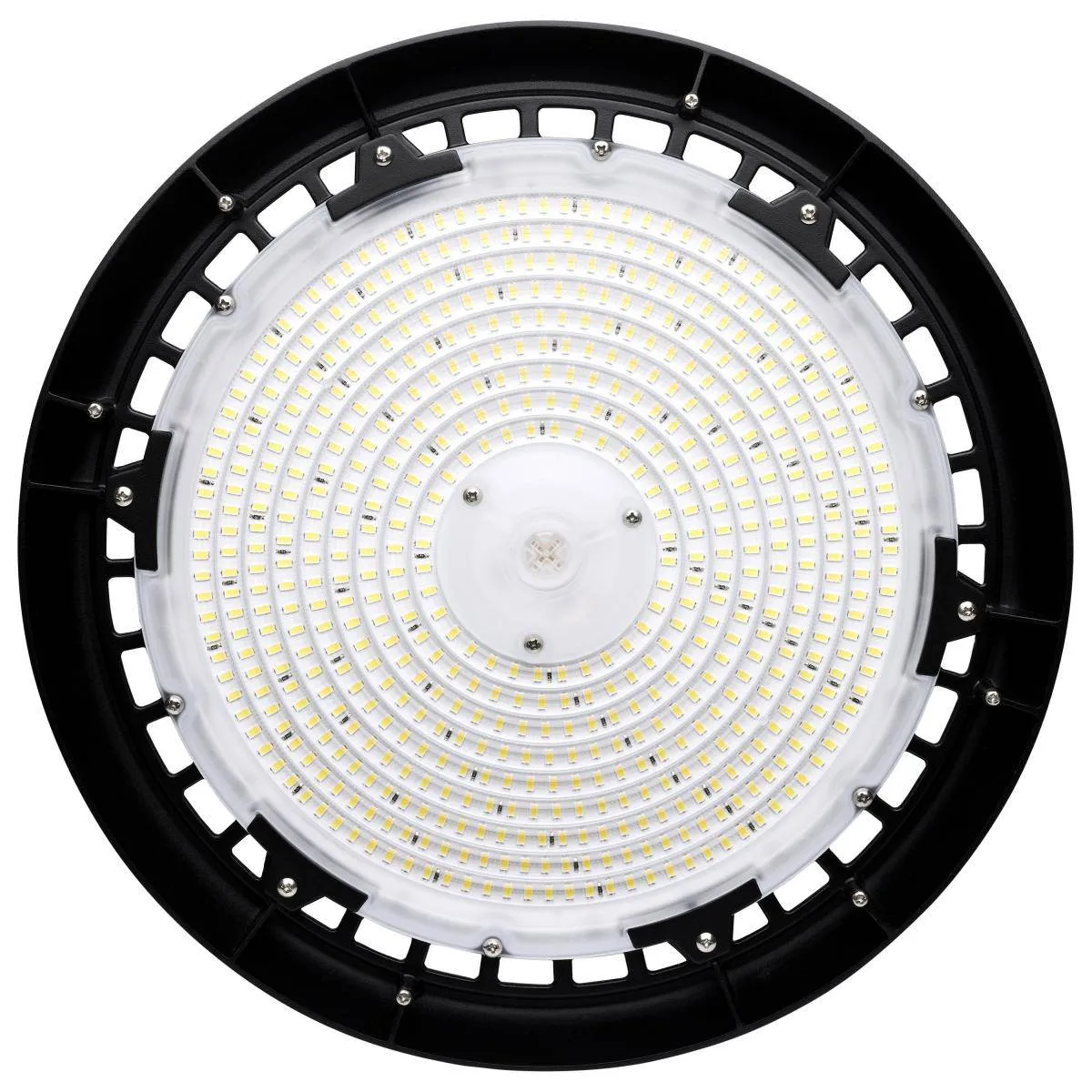

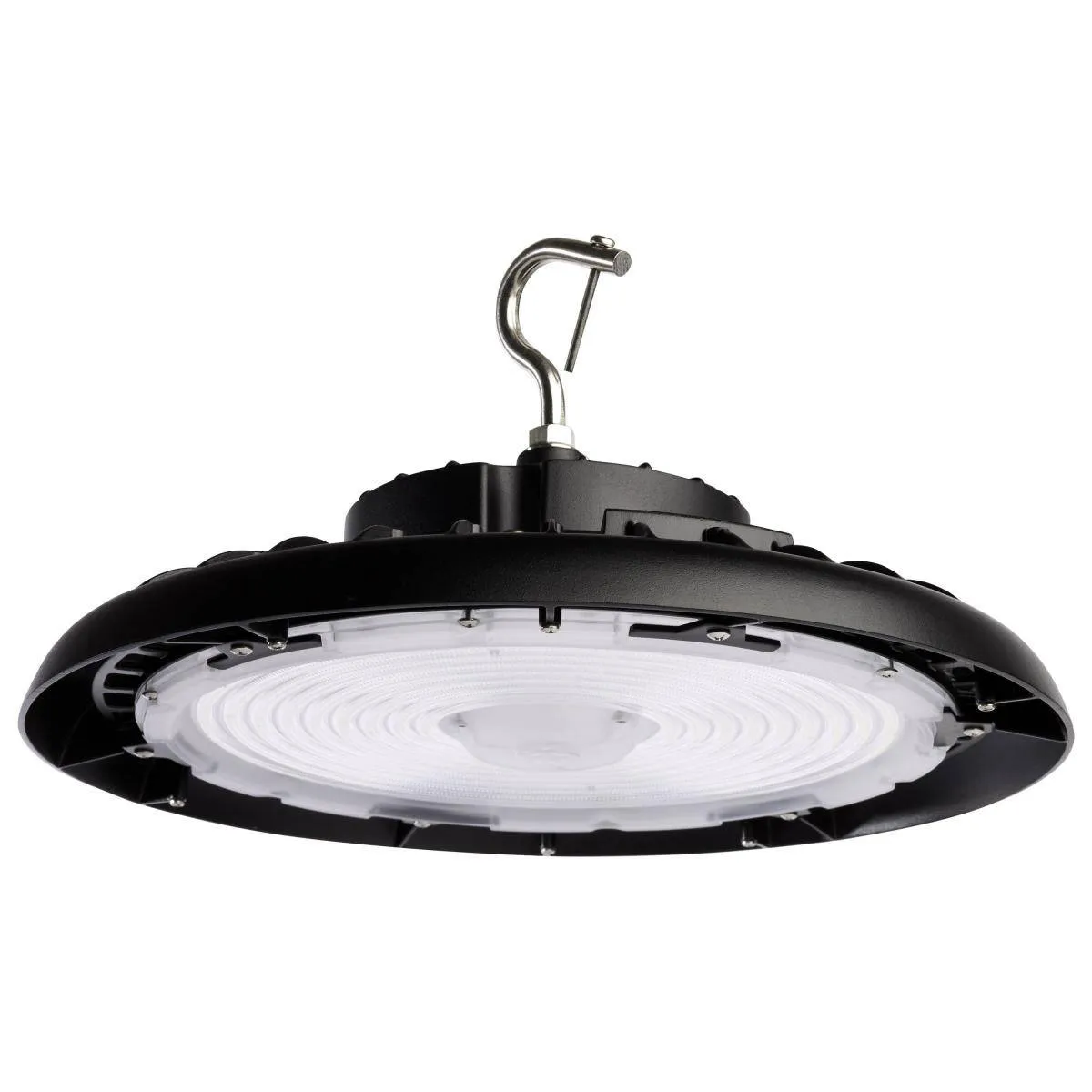

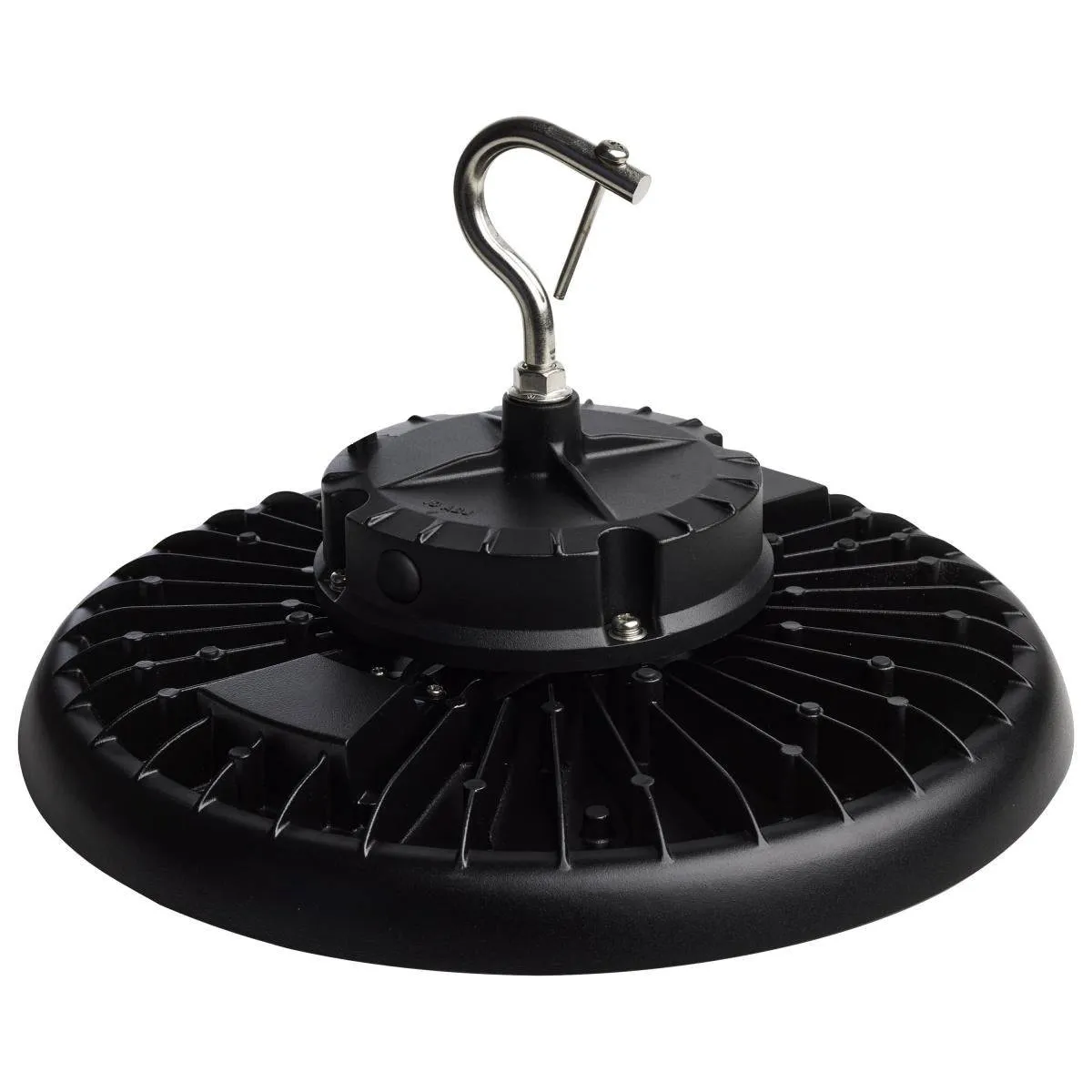

LED UFO HIGHBAY 240W/5000K
Introducing our newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated, sensor port for easy field installation of an add on microwave sensor. They have a 90 degree beam angle, a locking hook, are IP65, 0-10V dimmable, and feature 6KV surge Protection. They are rated for 50,000 hours and carry a 5-year warranty. Offered with these is a full suite of accessories including yoke mounts, pendant adapters, protective cages, anti-glare shields, a sensor and remote and an add on EM.
- Integrated Sensor Port
- IP65
- 6KV Surge Protection
- 6 Foot Whip
- 90 degree Beam Angle
- 50,000 hours
- 5 Year Warranty
General
| Status | Active |
| Fixture Type | UFO Hi-Bay |
| Finish | Black |
| Wattage | 240W |
| Lumen Output | 34800L |
| CCT (Kelvin) | 5000K |
| IP Rating | IP65 |
| Indoor or Outdoor Fixture | Indoor |
Specifications
| Technology | LED |
| Wattage | 240W |
| Lumen Output | 34800L |
| CCT (Kelvin) | 5000K |
| Color Temperature | Natural Light |
| CRI | 80 |
| Voltage | 277V-480V |
| Beam Angle | 90 |
| Rated Hours | 50000 |
| Operating Temperature | -40C (-40F) to 45C ( 113F) |
| Dimmable | Yes-Dimmable |
| Dimming Note | 0-10V Dimming Only |
| Photocell or Sensor | Optional Add-On |
| Lens Material | Polycarbonate (PC) |
| Surge Protection | Built-in surge protection - 6KV |
| Weight (lb.) | 10.11 |
| IP Rating | IP65 |
| Material | Die-cast Aluminum |
Dimensions
| Height (in.) | 8.11 |
| Width (in.) | 13.39 |
Compliance
| Safety Listing | cULus - Listed |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | S-LNAWD2 |
| NSF Approved | Yes |
| CA T20 / T24 Rationale | T20 Exempt - Fixtures Not Regulated |
| California Status | Lawful for sale in California |
| Title 20 / 24 Status | Lawful for sale |
| California Prop 65 | Lead |
| RoHS Compliant | Yes |
| FCC Compliant | Yes |
| SDS Sheet | LED Fixture |
Additional Information
| Installation Notes | Mounting Height: Up to 35 feet |

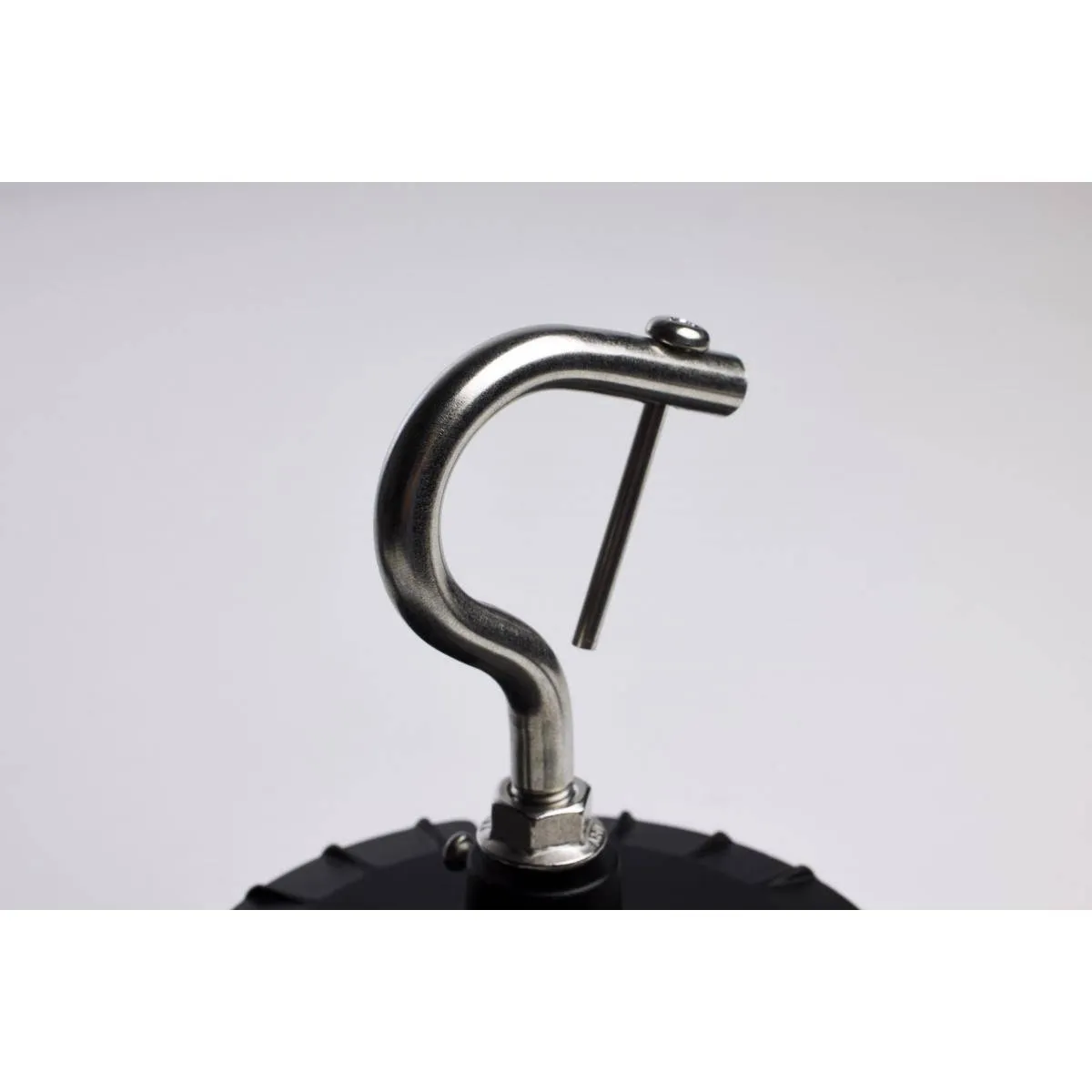

| Includes | Locking Hanging Hook; 6 Foot Whip |
| Warranty |
Packaging
| Each UPC | 045923648205 |
