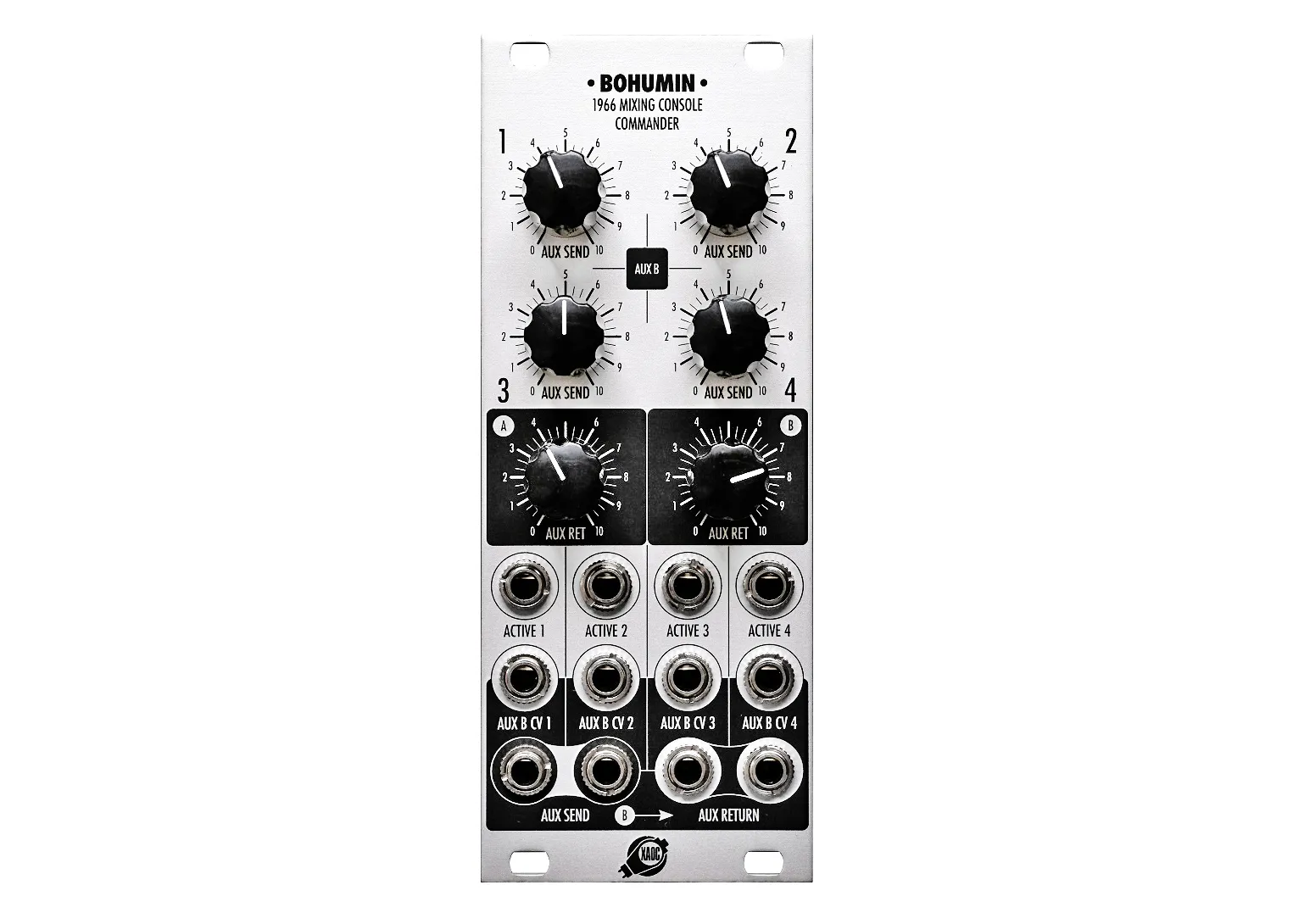

Bohumin serves as an expansion module designed specifically for the Ostrawa full stereo mixer module. When Bohumin is connected to Ostrawa, it adds an additional full stereo AUX bus, granting voltage control over the level of the effect applied to each channel.

Bohumin offers manual attenuators for the stereo returns of both AUX A and AUX B. It also includes four gate inputs that enable automated clickless muting for each stereo input channel. It is important to note that Bohumin is not compatible with Ostrawa's sister module, Praga.

Likewise, Praga's expander module, Hrad, cannot be connected to Ostrawa. However, it is possible to create chains of Ostrawas and Pragas in any combination, with each module able to have its corresponding expander attached.

Features:

• Expander for Xaoc Ostrawa mixer
• Additional AUX B effect loop
• Full stereo sends and returns
• CV inputs for controlling AUX B sends
• Return attenuators for AUX A and AUX B
• Gate control inputs for channel muting

Technical Details:

• 10HP, skiff friendly
• Power drawn from Ostrawa: 50mA/-40mA

Product Specs

• Item Number: 27352
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Poland
• MPN: XAOC-BOH
• Modular Grid: Eurorack
• Dimensions: 10 HP
• Power: 50 mA 12V 40 mA -12V 0 mA 5V
