Product Details
＋

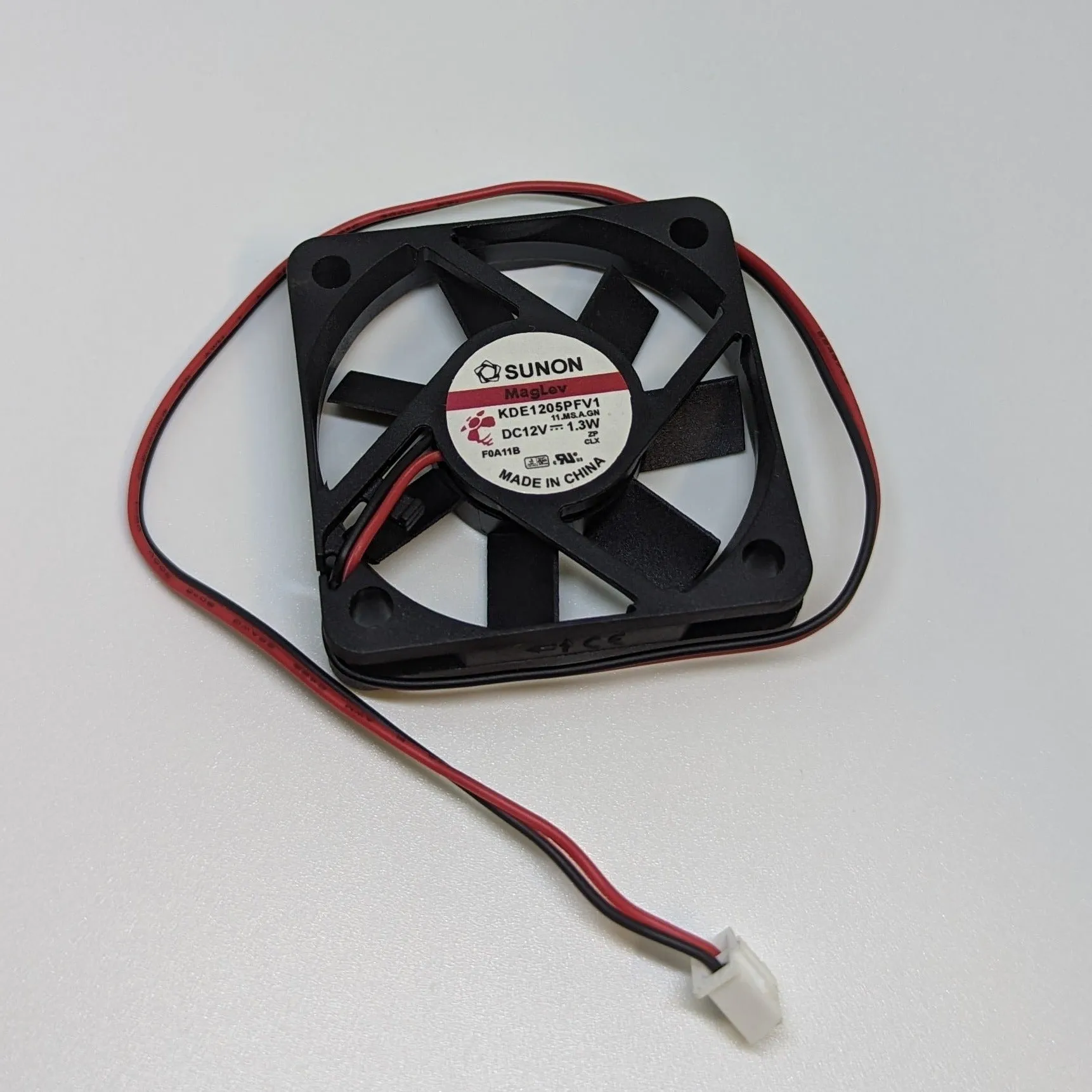

This fan is a QUIET replacement the motherboard cooling fan in your Creality CR series (12V) 3D Printer.
This fan WILL NOT work on the Ender 3, Ender 3 PRO, Ender 4, CR-10S PRO, CR-20, CR-20 PRO or CR-X. All of these machines are 24V and require 24V fans.
Specifications:Brand Name/ Type: Sunon / Ball Bearing (VAPO) Axial Model Number: KDE1205PFV1 Size: 50*50*10mm Package Includes:1 x 12V 5010 Axial Fan |
Technical Specification
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 4.5~13.8 VDC |
| Starting Voltage |
4.5VDC (25 dec.C POWER ON/OFF)
|
| Rated Speed |
5200 RPM /- 10%
|
| Air Delivery |
13 CFM / MAX 15CFM
|
| Static Pressure |
0.14 Inch-H2O / MAX 0.16 Inch-H2O
|
| Rated Current | 0.11 AMP |
| Rated Power | 1.3 WATTS |
| Noise Level |
30 dB(A) / MAX 38 db(A)
|
| Direction of Rotation |
Counter Clockwise viewed from front of Fan Blade
|
| Operating Temperature |
-10 to 70 deg. C
|
| Storage Temperature |
-40 to 70 deg. C
|
| Bearing System |
Vapo Bearing System
|
| Weight | 20g |
| Safety |
UL/CUR/TUV/CE Approvals
|
| Locked Rotor Protection |
Automatic Restart Capability
|
| Termination | JST - 2 Pin |
| Wire Length | ~ |
